Fire-Lite Alarms by Honeywell

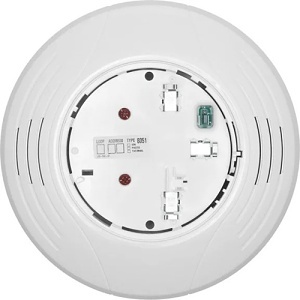

Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
B200S-WH
|FL-B200SWH
Shop all Fire-Lite Alarms by Honeywell
Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
B200S-WH | FL-B200SWH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The B200S-WH is a white, Intelligent addressable sounder base capable of producing sound output in high or low volume with ANSI Temporal 3, ANSI Temporal 4, continuous tone, marching tone, and custom tone. Uses LiteSpeed™ protocol. The B200S sounder and -LF sounder bases (B200S-WH/B200S-IV/ B200S-LF-WH/B200S-LF-IV) adopt the same address as the detector, but use a unique device type on the loop. The Fire Alarm Control Panel (FACP) can use that address to command an individual sounder — or a group of sounders — to activate. The command set from the FACP can be tailored to multiple event-driven tone outputs allowing selection of volume (75 or 85 dBA), tone (ANSI Temporal 3, ANSI Temporal 4, or March Time) and group. In addition, some FACPs will enable custom tone patterns. The B200S series sounder bases recognize the System Sensor synchronization protocol. This enables them to be used as a component of the general evacuation signal — along with other System Sensor AV appliances — when connected to a power supply or FACP output capable of generating the System Sensor synchronization pulses.
Main Features
- Bases enable quick and secure detector plug-in
- SEMS screws provide easyWiring connection
- Support for 12-24 AWG provides installation flexibility
- Multiple base formats meet application requirements
- Standard white color with ivory and black options
- UL 268 compliant
- Mechanical locking feature restricts removal of attached sensor head
- Pre-wired mounting plate simplifies installation
- Application driven feature sets
- Sounder bases both UL 268 and UL 464 compliant
General Information
Name: Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices & Accessories, Detector Accessories & Bases
UPC Code: 783863052996
Country of Origin: MX. Country of origin is subject to change.
Specifications
ADI Part Number FL-B200SWH Brand Name Fire-Lite Alarms by Honeywell Manufacturer Honeywell International, Inc Manufacturer Part Number B200S-WH Product Model B200S-WH Product Name Intelligent Addressable Sounder Base Product Series B200 Product Type Detector Base
Device Supported Detector, Module
ADI Part Number Replaces BK-B200S Model Number Replaces B200S
Color White Height 1.6" Weight 8.01oz
Diameter 6.9"
Additional Information Country of Origin: Mexico. Country of origin is subject to change.
Compatibility System Sensor Sync-Circuit Modules: MDL MDL3R MDLW MDL3W SYNC-1 Country of Origin MX Features Addressable Loop, Compact, Easy Installation, Surface Mount
