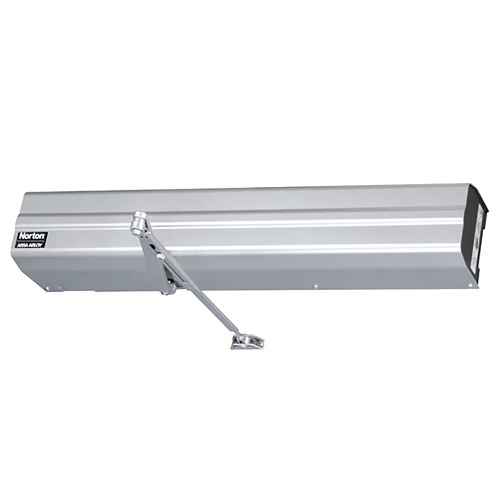

Norton Rixson 5730 689 Low Energy Door Operator, Surface Mount, Push Side, Top Jamb, Double Lever Arm Regular, Aluminum
5730 689|0L-5730689
Norton Rixson 5730 689 Low Energy Door Operator, Surface Mount, Push Side, Top Jamb, Double Lever Arm Regular, Aluminum
5730 689|0L-5730689
Key Features
- Stop (push) side of door
- Standard-duty Double Lever Arm
- Frame reveals 2-5/8" - 6-3/4"
Key Features
- Stop (push) side of door
- Standard-duty Double Lever Arm
- Frame reveals 2-5/8" - 6-3/4"
.jpg)
Key Features
- Stop (push) side of door
- Standard-duty Double Lever Arm
- Frame reveals 2-5/8" - 6-3/4"
Norton Rixson
Norton Rixson 5730 689 Low Energy Door Operator, Surface Mount, Push Side, Top Jamb, Double Lever Arm Regular, Aluminum
5730 689 | 0L-5730689
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The 5700 Series low energy operator is a reliable ADA solution comprising of the Norton Rixson heavy-duty 1600 Series door closer. The use of a hydraulic closer ensures quiet, consistently smooth operation ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5700 Series offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
Main Features
- Stop (push) side of door
- Standard-duty Double Lever Arm
- Frame reveals 2-5/8" - 6-3/4"
- Auxiliary door stop required
- 170 Deg swing (trim permitting)
- Non-handed
- For use on interior and exterior doors with medium traffic
- Comprises Norton Rixson 1601 adjustable mechanical door closer
- Compatible with door switches, wave-to-open switches and radio frequency (RF) devices
- Powers and coordinates function of electric strikes and other accessories
General Information
Name: Norton Rixson 5730 689 Low Energy Door Operator, Surface Mount, Push Side, Top Jamb, Double Lever Arm Regular, Aluminum
Category: Norton Rixson, Access Control, Door Hardware, Door Closers
UPC Code: 197163003112
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number 0L-5730689 Brand Name Norton Rixson Door Handing Non-handed Manufacturer ASSA ABLOY Manufacturer Part Number 5730 689 Product Model 5730 689 Product Name Norton Rixson 5730 689 Low Energy Operator Door Closer Product Series 5700 Product Type Door Closer
-
Application/Usage Door
-
Limited Warranty 2 Year
-
Country of Origin US Environmental Certification Americans with Disabilities Act (ADA) Compliant, ANSI/BHMA A156.19, ANSI/BHMA A156.4, Environmental Product Declaration (EPD), UL 10C Positive Pressure up to 3 hours, UL-cUL Listed Features 170° swing (trim permitting), Auxiliary door stop required, Compatible with door switches, wave-to-open switches and radio frequency (RF) devices, Comprises Norton Rixson 1601 adjustable mechanical door closer, For use on interior and exterior doors with medium traffic, Frame reveals 2-5/8" - 6-3/4", Non-handed, Powers and coordinates function of electric strikes and other accessories, Standard-duty double lever arm, Stop (push) side of door
