DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
PG9WLSHW8|3W-PG9WLSHW8
DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
PG9WLSHW8|3W-PG9WLSHW8
Key Features
- Industry-leading PowerGWireless technology
- Connect siren, strobe and 4 PGMs for a full range of applications
- Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision
Key Features
- Industry-leading PowerGWireless technology
- Connect siren, strobe and 4 PGMs for a full range of applications
- Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Industry-leading PowerGWireless technology
- Connect siren, strobe and 4 PGMs for a full range of applications
- Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision
DSC
DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
PG9WLSHW8 | 3W-PG9WLSHW8
Please sign in to view pricing and availability and to add to cart.
Accessories
Magnetic Contacts
ADI # 0E-2531WGW10
MODEL # 2531WGW10
2531WGW10|0E-2531WGW10
Sign In for Dealer Pricing
Siren & Strobe Combo
ADI # 0E-OUTDSIRSB
MODEL # OUTDSIRSB
OUTDSIRSB|0E-OUTDSIRSB
Sign In for Dealer Pricing
Wireless Intrusion
ADI # 3W-HSM2HOST9
MODEL # HSM2HOST9
HSM2HOST9|3W-HSM2HOST9
Sign In for Dealer Pricing
Magnetic Contact Transmitters
ADI # 3W-PG9303
MODEL # PG9303
PG9303|3W-PG9303
Sign In for Dealer Pricing
Magnetic Contact Transmitters
ADI # 3W-PG9309
MODEL # PG9309
PG9309|3W-PG9309
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

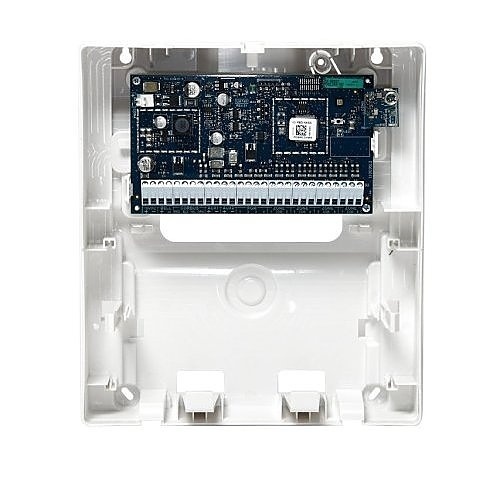

Use the Tyco | PowerG Wired to Wireless Upgrade & Expansion Module to upgrade and enhance old security systems. Quick. Easy. Secure.
The Tyco | PowerG Wired to Wireless converter leverages industry-leading PowerG wireless technology capabilities, featuring superior encryption and long range.
The Tyco | PowerG Wired to Wireless converter leverages industry-leading PowerG wireless technology capabilities, featuring superior encryption and long range.
- 8 wired inputs enable to connect to 8 hardwired zones
- Normally Open / Normally Closed, Single End of Line and Double End of Line configuration
- 250ms loop response
- Support for:
- Up to 18 conventional 2-wire smoke detectors
- 4-wire smoke detectors
- CO detectors
- Siren output (Supervised) 12V @ 700mA
- 4 programmable PGM outputs
- PGM support for ON/OFF functionality
- Enhanced tamper protection with front and back cover tamper switches
- AC to DC power adapter output of 18VDC
- 2 Auxiliary independent power loops (500mA total)
- 24h battery backup (sold separately) located inside the device enclosure
- Enhanced security with the integrated power supply supervision
Main Features
- Industry-leading PowerGWireless technology
- Connect siren, strobe and 4 PGMs for a full range of applications
- Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision
- Lead acid backup is safely stored inside the plastic cabinet
- Use your favorite hardwired device from any hardwired portfolio and incorporate it into the PowerG ecosystem
General Information
Name: DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
Category: DSC, Intrusion, Alarm Control Panels & Keypads, Control Panel Modules
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number 3W-PG9WLSHW8 Brand Name DSC Manufacturer Johnson Controls Manufacturer Part Number PG9WLSHW8 Product Line PowerG Product Model PG9WLSHW8 Product Name PowerG Wired to Wireless Upgrade & Expansion Module Product Type Security System Wireless Expansion Module Weight 6.28lb
Connectivity Technology Wired, Wireless
Application/Usage Carbon Monoxide Detector, Security System, Siren, Smoke Detector, strobe Depth 3.1" Height 8.9" Width 9.8"
Installation Type Hybrid
Country of Origin MX Features Bell Output, Life-Safety Sensor Support
