Blustream HEX31WP-TX-US 2-HDMI and 1-USB-C Wall Plate Transmitter
HEX31WP-TX-US|6E-HEX31WPTX
Blustream HEX31WP-TX-US 2-HDMI and 1-USB-C Wall Plate Transmitter
HEX31WP-TX-US|6E-HEX31WPTX
Blustream
Blustream HEX31WP-TX-US 2-HDMI and 1-USB-C Wall Plate Transmitter
HEX31WP-TX-USÂ |Â 6E-HEX31WPTX
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

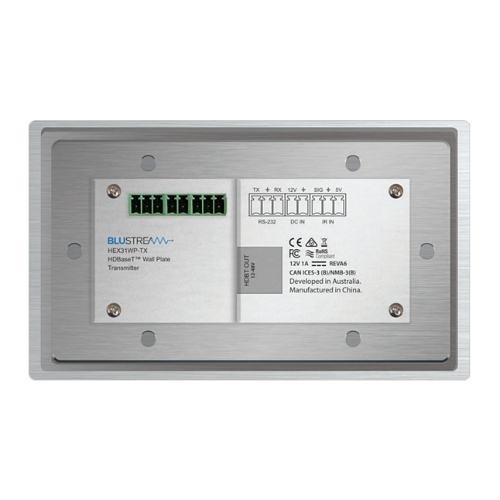

Our HEX31WP-TX HDMI/USB-C wall plate HDBaseT Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0). The HEX31WP-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT receivers / Matrix). The HEX31WP-TX has been designed to work with all Blustream HDBaseT receiver and matrix solutions.
Main Features
- 2xHDMI and 1x USB-C inputs with manual / auto source selection
- Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840x2160 at 30 Hz 4:4:4, 4096x2160 at 24 Hz 4:4:4, and 4K at 60 Hz 4:2:0)
- Extends HDMI at 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Input selection via front panel, IR or RS-232
- Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT receiver
- Supports 12V-48V PoC from compatible Blustream HDBaseT receiver / matrix products
- Bi-directional RS-232 pass through
- Supports IR pass-through to HDBaseT device
General Information
Name: Blustream HEX31WP-TX-US 2-HDMI and 1-USB-C Wall Plate Transmitter
Category: Blustream, Pro AV, Commercial Video Conferencing, Video Conference Mounts & Accessories
UPC Code: 9340242004475
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 6E-HEX31WPTX Brand Name Blustream Manufacturer Part Number HEX31WP-TX-US Â
