Product Overview

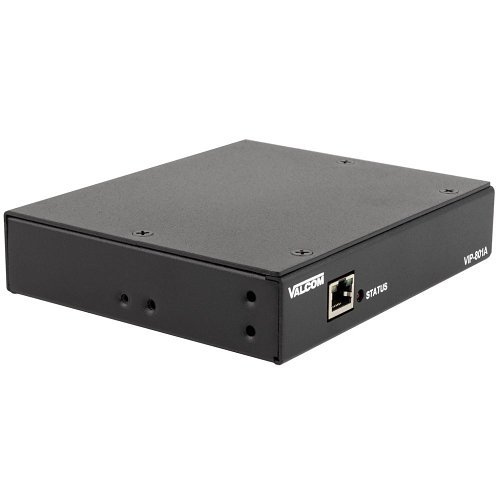

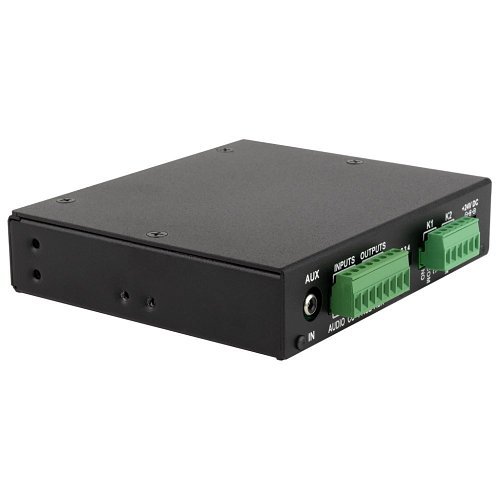

The VIP-801A is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
Main Features

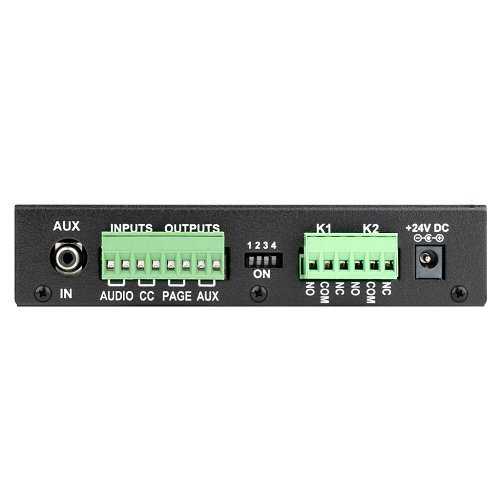

- Audio outputs
- programmable Form A or C Relay Closures
- programmable contact closure inputs
- RJ-45 Jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25V or70V amplifiers
- Barrel jack for optional DC power
General Information
Name: Valcom VIP-801A Single IP Gateway Audio Port
Category: Valcom, Pro AV, Commercial Audio, Pro Mass Notification
UPC Code: 799111020006
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 6V-VIP801A Brand Name Valcom Manufacturer Valcom, Inc Manufacturer Part Number VIP-801A Product Model VIP-801A Product Name Network Gateway Module Product Type Network Gateway Module
Application/Usage Telephone Entry System
Depth 5.3" Height 1.4" Weight 1.25lb Width 6.1"
Input Voltage 24V DC Power Source DC
Country of Origin US
