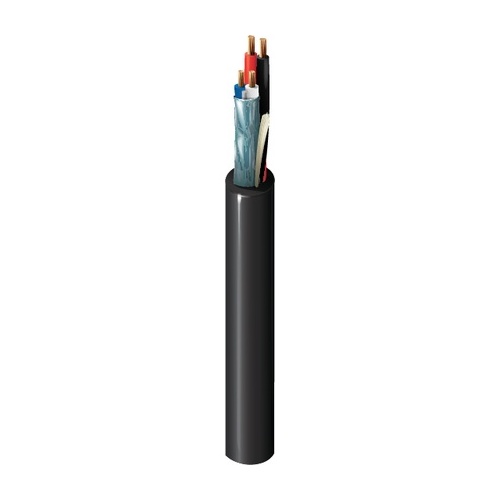

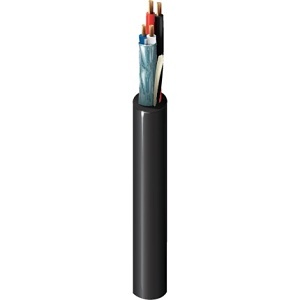

Belden 1392A 0101000 Lighting and Automation Riser Cable, 18/2 Unshielded BC and Pair Shielded 22 AWG Stranded BC, CMR, CMG, Indoor, 1000' (304.8m), Reel, Black
1392A 0101000|7B-1392A0101
Belden 1392A 0101000 Lighting and Automation Riser Cable, 18/2 Unshielded BC and Pair Shielded 22 AWG Stranded BC, CMR, CMG, Indoor, 1000' (304.8m), Reel, Black
1392A 0101000|7B-1392A0101
Belden
Belden 1392A 0101000 Lighting and Automation Riser Cable, 18/2 Unshielded BC and Pair Shielded 22 AWG Stranded BC, CMR, CMG, Indoor, 1000' (304.8m), Reel, Black
1392A 0101000Â |Â 7B-1392A0101
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Automation and lighting control are growing rapidly in commercial buildings because of their ability to reduce energy consumption and cost. More sophisticated and complex systems are often integrated with HVAC and/or security systems as well.
Main Features
- UL Voltage Rating: 300V
- Max. Pull Tension: 65.3 lbs (29.6 kg)
- Fla mmability / Reaction to Fire: UL1666 Riser, FT4, IEEE 1202 FT4
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Conductor(s) PE - Polyethylene (Foam) 0.025 in (0.64 mm) 0.079 in (2.0 mm) White, Blue
- Conductor(s) PVC - Polyvinyl Chloride 0.013 in (0.33 mm) 0.073 in (1.9 mm) Black, Red
General Information
Name: Belden 1392A 0101000 Lighting and Automation Riser Cable, 18/2 Unshielded BC and Pair Shielded 22 AWG Stranded BC, CMR, CMG, Indoor, 1000' (304.8m), Reel, Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Riser Unshielded Cables
UPC Code: 612825114192
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 7B-1392A0101 Brand Name Belden Manufacturer Part Number 1392A 0101000 Product Type Multi-Conductor Cables Â
-
American Wire Gauge 22AWG Cable Listing CMG, CMR, FT4 Cable Rating Riser Conductor Count 1 Device Supported Automation/Control Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded Â
-
Cable Length 1000' Color Black Material PVC Package Type Reel Â
-
Environmental Certification RoHS, WEEE Indoor/Outdoor Indoor Â
