Camden CM-30AT 2" Square LED Illuminated Push Button, "Push to Exit" Switch with Adjustable 30 Second Timer, Green
CM-30AT|CM-30AT
Camden CM-30AT 2" Square LED Illuminated Push Button, "Push to Exit" Switch with Adjustable 30 Second Timer, Green
CM-30AT|CM-30AT
Camden Door Controls
Camden CM-30AT 2" Square LED Illuminated Push Button, "Push to Exit" Switch with Adjustable 30 Second Timer, Green
CM-30ATÂ |Â CM-30AT
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

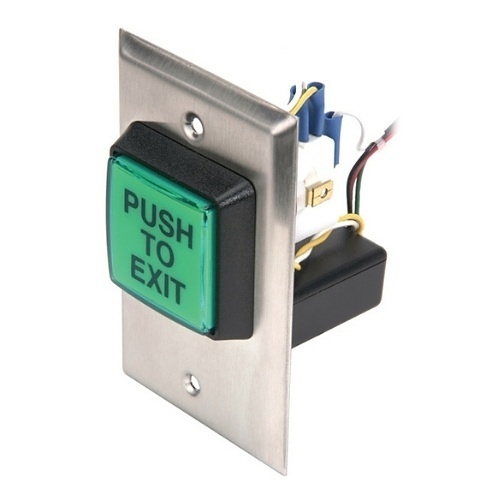

CM-30EE and CM-30AT LED illuminated exit switches are high visibility, economical 'request to exit' (REX) controls. Buttons are backlit in green with black PUSH TO EXIT text. They are supplied with a single gang industrial grade stainless steel faceplate and tamperproof screws.
CM-30EE is supplied with an integrated 30 second fixed timer. CM-30AT is supplied with an adjustable 30 second timer. Pushing the button cuts power to the magnetic lock and activates the timer. In-wall mounting box included.
Main Features
- Large 2" square illuminated button mounted on stainless steel faceplate
- Heavy duty stainless steel faceplate
- CM-30EE: 30 second fixed timer
- CM-30AT: 30 second adjustable timer
- In-wall back box included
- 12/24V with LED bulb
- Tamper proof screws and driver included
- CM-30EE: Double break design for additional security
- 3 year warranty with '2 for 1' replacement
General Information
Name: Camden CM-30AT 2" Square LED Illuminated Push Button, "Push to Exit" Switch with Adjustable 30 Second Timer, Green
Category: Camden Door Controls, Access Control, Egress Devices, Door Release Buttons
UPC Code: 670454173744
Country of Origin: Canada. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-30AT Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-30AT Product Model CM-30AT Product Name CM-30AT Push Button Product Type Push Button Weight (Approximate) (g) 204.117 Â
-
Gang Type Single Gang Maximum Timer Duration 30 Second Maximum Timer Duration (Second) 30 Â
-
Application/Usage Industrial Color Silver Height 4.8" Height (mm) 120.65 Material Stainless Steel Product Material Stainless Steel Weight (Approximate) 7.20 oz Width 3" Width (mm) 76.2 Â
-
Input Voltage 12V DC, 24V DC, 30V DC Input Voltage (V DC) 12, 24, 30 Â
-
Print/Message Push To Exit Â
-
Limited Warranty 3 Year Â
-
ADA Compliant Yes Features Built-in Timer, Momentary On/Off Mode, Wall Mount Package Contents - CM-30AT Push Button
- 1 x Single gang industrial grade stainless steel faceplate
- Tamperproof screws
- Driver
- In-wall mounting box
Â
