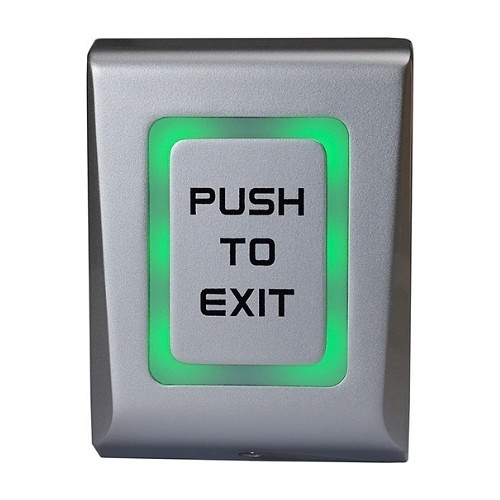

Camden Surface Mount LED Illuminated Push/Exit Switch
Camden Door Controls

Camden CM-9800/7 Illuminated Request to Exit Button, Capacitive, Surface Mount, SPDT

CM-9800/7 | CM-CM98007

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with IP 66 rating. The units feature a cast metal design and an adjustable 0 to 60 second relay timer. The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status.

The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED light illumination enables the switch to be highly visible in low light conditions.

Main Features

  • Capacitive'light touch' technology. No moving parts
  • ADA and ROHS Compliant
  • Weather and vandal resistant. IP 66 rated
  • Large LED Light Ring, RED, GREEN/ORANGE/NONE
  • Switch status or door status illumination (External input)
  • Hold Open relay timer, selectable 0 to 60 seconds
  • Heavy duty Form 'C' relay, rated 2 Amps
  • Tamper alarm
  • 12/24V, AC/DC

General Information

Name: Camden CM-9800/7 Illuminated Request to Exit Button, Capacitive, Surface Mount, SPDT
Category: Camden Door Controls, Access Control, Egress Devices, Door Release Buttons
UPC Code: 670454197962
Country of Origin: Canada. Country of origin is subject to change.
