Beale Street W5VB-BSC Speaker, On-Wall, Indoor Outdoor 5.25"
W5VB-BSC|DX-W5VBBSC
Beale Street W5VB-BSC Speaker, On-Wall, Indoor Outdoor 5.25"
W5VB-BSC|DX-W5VBBSC
Beale Street Audio
Beale Street W5VB-BSC Speaker, On-Wall, Indoor Outdoor 5.25"
W5VB-BSC | DX-W5VBBSC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

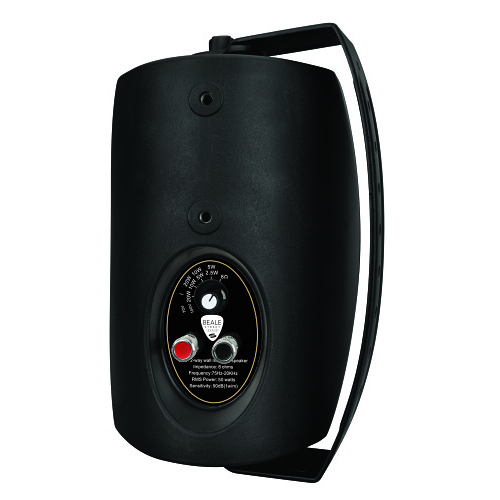

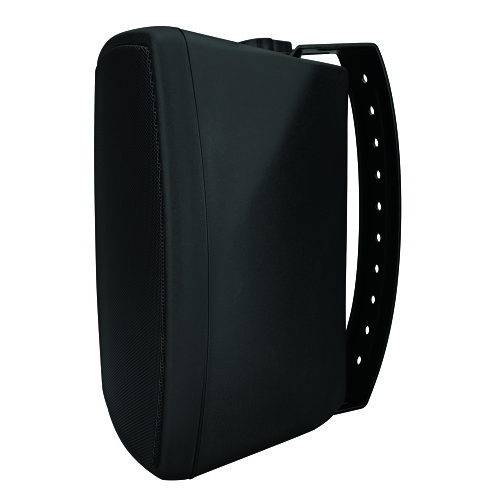

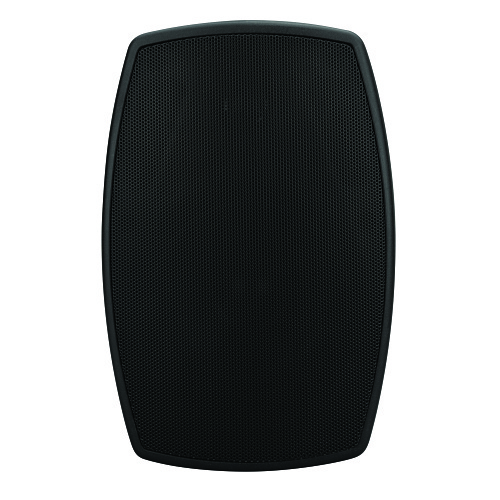

The W5VB-BSC is a 5.25" 8ohm/70V On-Wall Speaker.
Main Features
- 0.75” Titanium Tweeter
- 5.25” Engineered Woven Fiber Woofer
- Frequency Response of 60Hz-20 kHz
- RMS Power Output of 50 Watts
- IP44 Outdoor Rating
- Compatible with 8 ohm and 70V/100V systems
- Weight: 4.9 lbs (2.2kg)
- Dimensions: 7.9” x 7.5” x 10.6” (200mm x 195mm x 270mm)
- Transformer-70V Taps: 5W, 10W, 20W
- Transformer-100V Taps: 2.5W, 5W, 10W, 20W
General Information
Name: Beale Street W5VB-BSC Speaker, On-Wall, Indoor Outdoor 5.25"
Category: Beale Street Audio, Residential AV, Residential Audio, Speakers
UPC Code: 741835118484
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number DX-W5VBBSC Brand Name Beale Street Audio Manufacturer Beale Street Audio Manufacturer Part Number W5VBBSC Product Model W5VB-BSC Product Name 5.25" On-Wall Indoor/Outdoor Speaker Product Type Speaker
-
Impedance 8 ohms Speaker Size 5.25" Tweeter Driver Material Titanium Tweeter Driver Size 0.75" Woofer Driver Material Fiber Woofer Driver Size 5.25"
-
Maximum Frequency Response 20 kHz Minimum Frequency Response 60 Hz RMS Output Power 50 W
-
Color Black Depth 10.60" Form Factor In-wall Mount Height 7.9" Speaker Installation Indoor|Outdoor Weight (Approximate) 4.90 lb Width 7.5"
