Simply45 S45-1501P Pro Series CAT5e Unshielded, Pass-Through RJ45 with Cap45, 100-Piece
S45-1501P|G0-S451501P
Simply45 S45-1501P Pro Series CAT5e Unshielded, Pass-Through RJ45 with Cap45, 100-Piece
S45-1501P|G0-S451501P
Simply45
Simply45 S45-1501P Pro Series CAT5e Unshielded, Pass-Through RJ45 with Cap45, 100-Piece
S45-1501PÂ |Â G0-S451501P
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

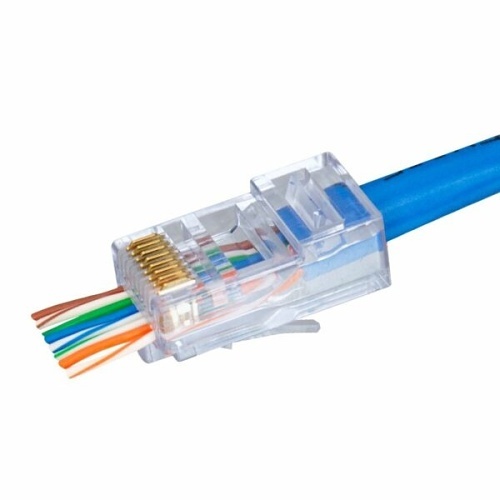

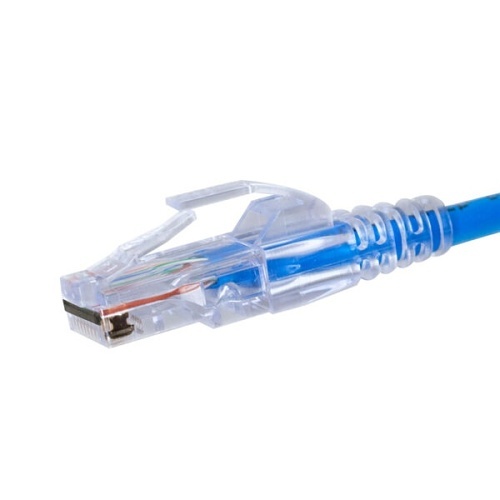

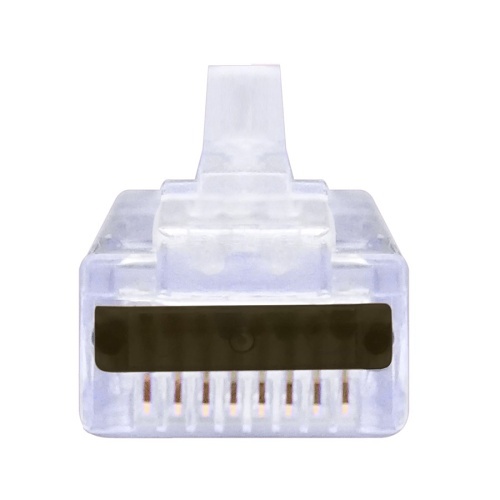

Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1501P is the same as our S45-1500P except is packaged in a convenient 50-piece plastic clamshell. The Simply45 ProSeries introduces the exclusive Cap45 (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45 prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45, any electrical risks associated with exposed wire ends are now eliminated completely.
Main Features
- Single Piece Design
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Solid and Stranded LAN Cables
- Straight-Line Wire Insert
- Crimp Tool Compatibility
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
General Information
Name: Simply45 S45-1501P Pro Series CAT5e Unshielded, Pass-Through RJ45 with Cap45, 100-Piece
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 810093721719
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number G0-S451501P Brand Name Simply45 Manufacturer SIMPLY45 LLC Manufacturer Part Number S45-1501P Packaged Quantity 50 Packing Clamshell Product Line Simply45 Product Model S45-1501P Product Name PRO Network Connector Product Series ProSeries Product Type Network Connector Â
-
Connector Details 1 x RJ-45 Network Male Contact Plating Gold Network Category Type Category 5e Shielding No Â
-
Connector Type RJ45 Network Male Number of Contacts 8 Â
-
Color Blue Weight (Approximate) 4 oz Â
-
Limited Warranty Lifetime Â
-
Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, HDBaseT, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Solid, Stranded Package Contents - PRO Network Connector
- 55 x Caps
TAA Compliant Yes Â
