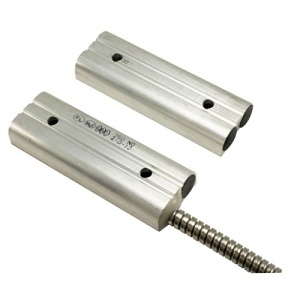

GRI 250-36HD Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Heavy Duty Magnet
250-36HD|GI-25036HD
GRI 250-36HD Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Heavy Duty Magnet
250-36HD|GI-25036HD
George Risk Industries
GRI 250-36HD Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Heavy Duty Magnet
250-36HD | GI-25036HD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The GRI 200 Series is referenced and produced as an industrial grade floor mount switch. Primarily used for the protection of overhead doors where the operation of heavy motorized traffic would make it impossible to use any type of plastic encapsulated switch.
The 200 housing is extruded from 6063 T5 aluminum material and tested to withstand a crushing force of 20,000 pounds or 10 tons without harming the delicate reed switch. All mounting hardware including lead anchors are provided as well as a mounting bracket for the actuating magnet.
- Extruded Aluminum Floor or Wall Mount Switch
- Universal Fit Mounting Holes on 200-36 Series
- Screw Mount
- #22AWG In 36” Stainless Steel Armored Cable
- Longer Leads Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Magnet, Bracket and Mounting Hardware Included
- Built-in E.O.L. Resistors Upon Request
- Supervisory Loops Available Upon Request
- Switches and Magnets Available Separately
- Lifetime Warranty
Main Features
- Extruded Aluminum Floor or Wall Mount Switch
- Universal Fit Mounting Holes on 200-36 Series
- Screw Mount
- #22AWG In 36" Stainless Steel Armored Cable
- Longer Leads Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Magnet, Bracket and Mounting Hardware Included
- Built-in E.O.L. Resistors Upon Request
- Supervisory Loops Available Upon Request
General Information
Name: GRI 250-36HD Overhead Door Switch Set, Wall Mount, Closed Loop, 3" Gap, Heavy Duty Magnet
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625030545
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-25036HD Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 25036HD Product Model 25036HD Product Name 25036HD Magnetic Contact Product Series 250 Product Type Magnetic Contact
-
Connectivity Technology Wired Contact Configuration N.O. Contact Form Form A Contact Resistance 150000 Micro Ohm Lead Length 36" Mounting Type Overhead Recommended Use Door Standard Gap 3" Termination Style Screw Terminal
-
Application/Usage Industrial Color White Product Material Aluminum
-
Power Source DC
-
Contact Type Closed Loop Installation Type Commercial
-
Limited Warranty Lifetime
-
Additional Information Switches and Magnets Available Separately Features End of Line (EOL) Resistor Package Contents - 25036HD Magnetic Contact
- Magnet
- Bracket
- Mounting Hardware
