GeoVision 520-DFK1355-000 Vandal Resistant Keypad Reader
GV-DFR1352Â |Â GU-DFK1355
Please sign in to view pricing and availability and to add to cart.
Product Overview

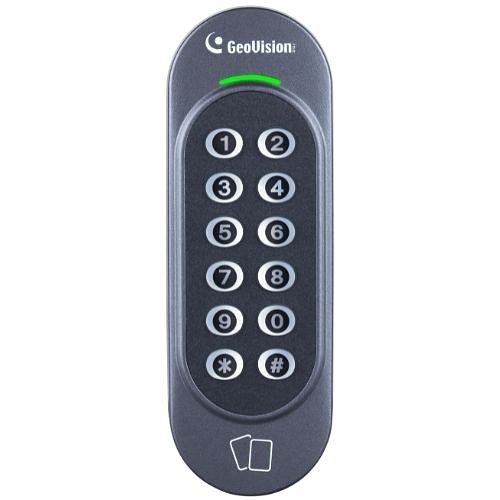

GV-DFK1355 is a keypad reader capable of reading PIN codes and access cards. It features a slim profile design, making it suitable for installation on a narrow door frame or in tight spaces. Thanks to its Wiegand and RS-485 interfaces, GV-DFK1355 can be connected to a variety of access control systems. With an ingress protection rating of IP66, the reader can be used in any environment. Additionally, the GV-DFK1355 reader, which has two inputs (Exit Button and Door Sensor) and one output (Door Lock), can control a single door when combined with the GV-AS Bridge controller and the cloud-based software GV-Cloud Access Control.
Main Features
- Narrow mullion design for door frame or tight space installation
- Access control card and PIN code recognition
- Wiegand interface for third-party integration
- RS-485 interface for longer distance installation
- RS-485 / OSDP communication
- 13.56 MHz ISO 14443A
- GeoVision access cards with GID (GeoVision Identifier) support
- Ingress protection (IP66)
- Case sensor detection for tempering alarm
- 12-key keypad with white backlight
General Information
Specifications
-
ADI Part Number GU-DFK1355 Brand Name GeoVision Manufacturer GeoVision, Inc Manufacturer Part Number 520DFK1355000 Product Line Reader Product Model GV-DFR1352 Product Name GV-DFK1355 Keypad Reader Product Series GeoVision Product Type Card Reader Access Device Â
-
Identification Method Key Code, Proximity Operating Range 0.79" Â
-
NDAA Compliant Yes TAA Compliant Yes Â
-
Serial Yes Wiegand Yes Â
-
Application/Usage Access Control System, Door Color Black Form Factor Door Mount, Gang Box Mount Height 1" Weight (Approximate) 3.39 oz Width 1.8" Â
-
Input Voltage 12V DC Â
-
Compatibility GeoVision Controllers: GV-AS210 2110 2120 GV-AS810 8110 8111 GV-AS410 4110 4111 GV-AS1620 GV-CS1320 Indoor/Outdoor Outdoor Package Contents - GV-DFK1355 Keypad Reader
- Cable
- Hex Key Wrench
- 3 x Screw
- Quick Start Guide
