Product Overview
The Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling. Advantage with SightLine™ Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184” Diagonal in 16:9 and up to 189” Diagonal in 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70" between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future proofing for height adjustability – this is the fine line between status quo and jaw drop.
General Information

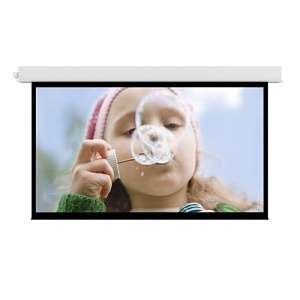

Name : Da-Lite 84300BLS 120" diag. Advantage Series Ceiling Recessed Electric Screen, 4:3, Standard Low Voltage Control (LVC) , Da-Lite by Legrand
Category : Pro Projector Screens
UPC Code : 717068567030
Specifications
General Information
ADI Part Number : HI-84300BLS
Brand Name : Da-Lite by Legrand
Manufacturer : Legrand Group
Manufacturer Part Number : 84300BLS
Product Line : Advantage Electrol
Product Name : Advantage Electrol Projection Screen
Product Type : Projection screen
Technical Information
Diagonal Image Size : 120"
Diagonal Image Size (mm) : 3048
Screen Fabric : Matte White
Screen Folding Mechanism : Electric
Screen Height : 69"
Screen Height (mm) : 1752.6
Screen Width : 92"
Screen Width (mm) : 2336.8
Aspect Ratio : 4:3
Product Information
Mount Type : Ceiling Mount
Warranty
Limited Warranty : 5 Year
Miscellaneous
Environmental Certification : GREENGUARD Gold
Environmentally Friendly : Yes
Package Contents : <ul><li>Advantage Electrol Projection Screen</li><li>Wall switch</li></ul>
