Product Overview

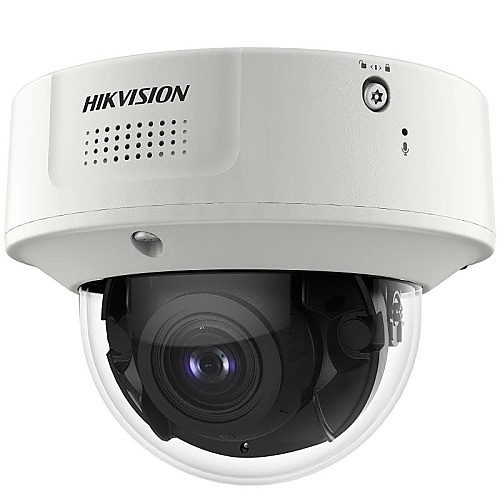

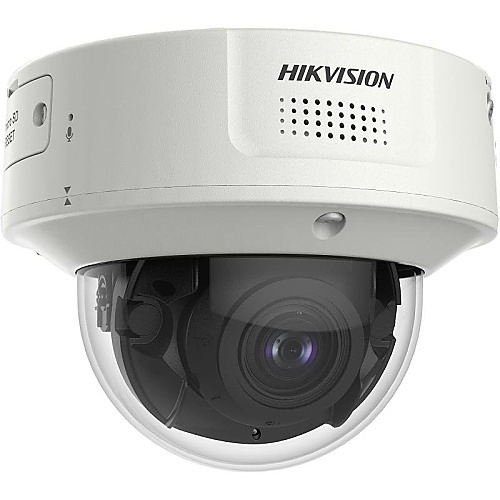

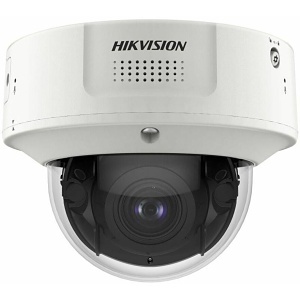

4MP DeepinView Moto varifocal dome camera, maximum resolution 2688x1520 with IR cut filter and 2.8-12mm Lens.
General Information
Name : Hikvision IDS-2CD7146G0-IZHSY (2.8-12MM) DeepinView Series 4MP Moto Varifocal Dome Camera, WDR, IP67, IK10 , Hikvision
Category : Dome Cameras
UPC Code : 842571148022
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HX-7146IZHSY
Brand Name : Hikvision
Manufacturer : Hikvision
Manufacturer Part Number : IDS-2CD7146G0-IZHSY (2.8-12MM)
Product Line : DeepinView
Product Model : iDS-2CD7146G0-IZ(H)S(Y)(D)
Product Name : 4MP DeepinView Moto Varifocal Dome Camera
Product Type : Network Camera
Weight (Approximate) (g) : 990
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 4MP
Field of View : horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.2
Maximum Focal Length (mm) : 12
Maximum Frame Rate : 60 fps
Minimum Focal Length : 2.80 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 4.3x
Camera
Night Vision Distance : 131.23 ft
Night Vision Distance (mm) : 40000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 4000000
Maximum Video Resolution : 2560 x 1440
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1 Second
Shortest Shutter Speed : 1/100000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-12 mm
Lens Included : Yes
Maximum Focal Length : 12 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Diameter (mm) : 144.3
Durability : Dust Resistant, Vandal Proof, Water Resistant
Form Factor : Dome
Weight (Approximate) : 2.18 lb
Power Description
Input Voltage : 12V DC, 24V AC
Product Information
Diameter : 5.7"
Mount Type : Ceiling Mount, Corner Mount, Pendant Mount, Vertical Pole Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.8
Storage
Recording Formats : 2K
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 60
Miscellaneous
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Features : Alarm Triggering, Audio Compression, Built-in Microphone, Day/Night, Human Detection, Motion Detection, Privacy Masking, Region of Interest, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact Protection Rating : IK10
Ingress Protection Rating : IP67
TAA Compliant : No
