Hikvision DS-2TX3636-25P Thermal Smart Linkage Tracking System Dome Camera
DS-2TX3636-25P
|HX-TX363625P
Hikvision DS-2TX3636-25P Thermal Smart Linkage Tracking System Dome Camera
DS-2TX3636-25P | HX-TX363625P
Please sign in to view pricing, availability, and to add to cart.
Product Overview

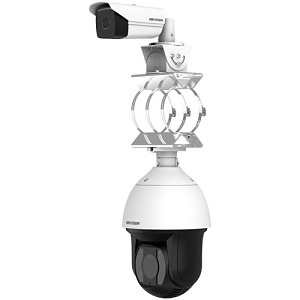

Hikvision DS-2TX3636-25P Thermal Smart Linkage Tracking Systems is formed by one fixed camera and one PTZ camera. The PTZ camera smartly tracks multiple moving targets, and the fixed camera offers the panoramic view. The linkage of both can be realized by the client software. It provides you with smart detection of moving targets with up to 183 m effective detecting distance (to human targets), 1470 m effective detecting distance (to vehicle targets), and up to 30 targets can be tracked simultaneously. The system mainly applies to major industrial infrastructures requiring perimeter prevention, such as: airport, prison, railway, museum, enterprise, high-end villas and others.
Main Features
- High sensitivity thermal module with 384 × 288 resolution
- NETD is less than 40 mk (@25° C, F#=1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Speed Dome supports 36x optical zoom with over 200 m IR distance
- Smart analysis and linkage, no VCA server configuration required
- Automatic master-slave tracking: Stable and continuous
- Track up to 30 targets simultaneously with up to 150 m effective detecting distance (on human targets)
- Target multi-tracking and auto-switch, with less than 1-second response time
General Information
Specifications
ADI Part Number HX-TX363625P Brand Name Hikvision Manufacturer Hikvision Manufacturer Part Number DS-2TX3636-25P Product Model DS-2TX3636-25P Product Name Thermal Smart Linkage Tracking System Product Type Network Camera
Connectivity Technology Wired Effective Camera Resolution 1MP Lens Type Varifocal Optical Zoom 36x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 656' Wide Dynamic Range Yes
Ingress Protection Rating IP66 NDAA Compliant No
Maximum Video Resolution 1920 x 1080
Focal Length 25mm
Remote Management Yes
Color White Durability Dustproof, Waterproof Form Factor Dome
Mount Type Pole Mount
Recording Formats HD
Maximum Resolution 1280 x 720
Country of Origin CN
