Product Overview
High Output, Dual 15"" Low-Frequency / Subwoofer Loudspeaker

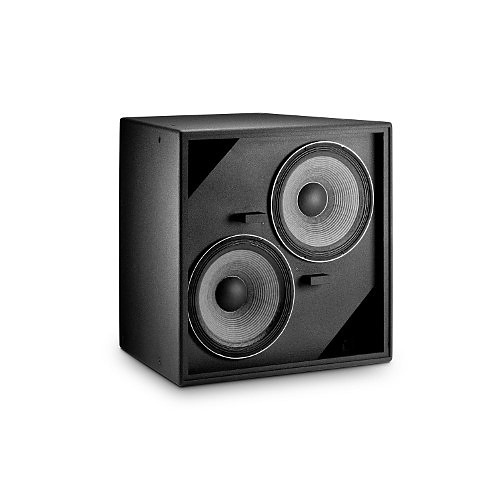

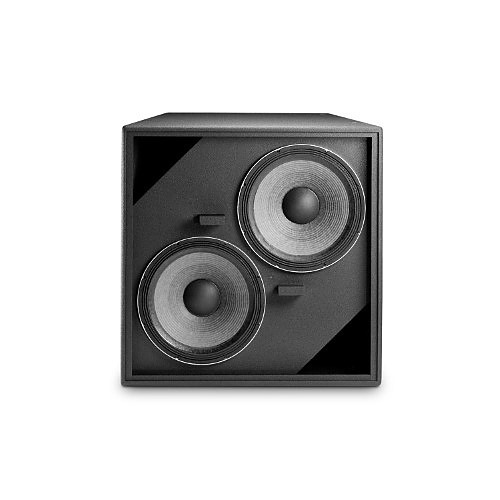

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.
General Information
Name : JBL Professional PD525S Dual 15" Subwoofer System, 2275H Driver, 75mm (3 in) , JBL Professional
Category : Pro Speakers
UPC Code :
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : JF-PD525S
Brand Name : JBL Professional
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : PD525S
Product Model : PD525S
Product Name : High Output, Dual 15" Low-Frequency / Subwoofer Loudspeaker
Product Series : PD500
Product Type : Woofer
Weight (Approximate) (g) : 53400
Technical Information
Impedance : 4 ohms
Impedance (Ohm) : 4
Maximum Frequency Response (Hz) : 1100
Minimum Frequency Response (Hz) : 40
PMPO Output Power (W) : 8000
Sensitivity : 102 dB
Sensitivity (dB) : 102
Woofer Driver Size : 15"
Woofer Driver Size (mm) : 381
Audio
Maximum Frequency Response : 1.10 kHz
Minimum Frequency Response : 40 Hz
PMPO Output Power : 8000 W
RMS Output Power : 2000W
RMS Output Power (W) : 2000
Subwoofer Type : Passive
Physical Characteristics
Application/Usage : Auditorium, House of Worship, Sport Center, Stage
Color : Black
Depth : 26.4"
Depth (mm) : 670
Durability : Weather Resistant
Height : 30.8"
Height (mm) : 782
Product Color : Black
Subwoofer Depth : 26.37"
Subwoofer Depth (mm) : 669.8
Subwoofer Height : 30.85"
Subwoofer Height (mm) : 783.59
Subwoofer Width : 31.10"
Subwoofer Width (mm) : 789.94
Weight (Approximate) : 117.73 lb
Width : 30.8"
Width (mm) : 783
Miscellaneous
Environmental Certification : IP
Features : Enclosure dimensions compatible with all PD500 Series models, Low frequency extension to 40 Hz, Two high power 380 mm (15 in) low frequency drivers
