Product Overview

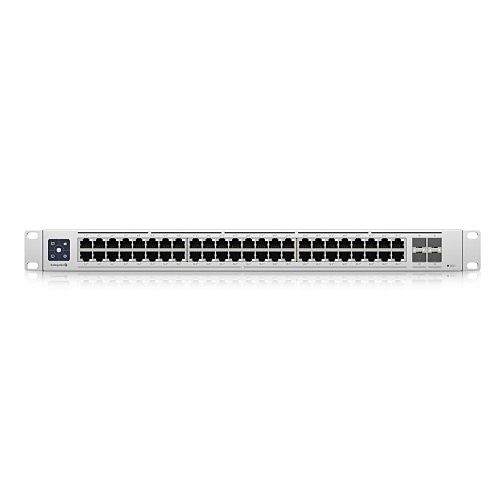

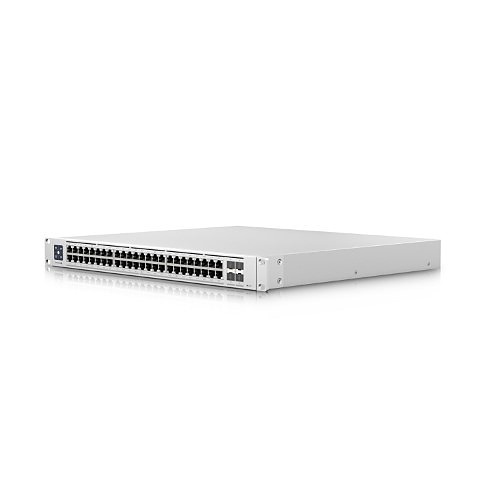

Grow your business's network capacity to support power over Ethernet compatible devices such as security cameras, VoIP phones, access points, and more with the UniFi Switch Enterprise 48 48-Port 2.5Gb PoE+ Compliant Managed Network Switch from Ubiquiti Networks. This rackmounted managed switch features 48 high-speed 2.5Gb Ethernet ports, each supporting up to 34W of power with a total budget of 720W. There are also four 10Gb SFP+ ports for fiber uplinks. Use the convenient 1.3" LCM color touchscreen to quickly configure, monitor, and troubleshoot your connections. Or you can manage your switch from almost anywhere using the UniFi Network app, which also includes an augmented reality feature that provides you with a visual overview of your port connections. Rackmount hardware is included.
General Information
Name : Ubiquiti USW-ENTERPRISE-48-POE Unifi 48-Port 2.5 Gbps PoE Switch , Ubiquiti
Category : Network Switches
UPC Code : 810010074737
Country of Origin : +1. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : KX-48POEUSW
Brand Name : Ubiquiti
Manufacturer : Ubiquiti Inc.
Manufacturer Part Number : USW-ENTERPRISE-48-POE
Product Line : UniFi
Product Model : USW-ENTERPRISE-48-POE
Product Name : Ubiquiti Networks UniFi Switch Enterprise 48 48-Port 2.5Gb PoE+ Compliant Managed Network Switch with SFP+
Product Series : USW Enterprise
Product Type : Network Switch
Weight (Approximate) (g) : 6300
Technical Information
Material : SGCC Steel
Media Type Supported : Optical Fiber, Twisted Pair
PoE : Yes
Power Consumption : 150W
I/O Expansions
Expansion Slot Type : SFP+
Number of SFP+ Slots : 4
Number of Total Expansion Slots : 4
Interfaces/Ports
Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Expansion Slot, 48 x 2.5 Gigabit Ethernet PoE+
Total Number of Network Ports : 48
Uplink Port : Yes
Management & Protocols
Manageable : Yes
Media & Performance
Network Technology : 10GBase-X, 2.5GBase-T
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 3
Networking Standards : IEEE 802.3af, IEEE 802.3at
Physical Characteristics
Depth : 15.7"
Depth (mm) : 400.000
Height : 1.7"
Height (mm) : 44.000
Product Material : Steel
Weight (Approximate) : 13.9 lb
Width : 17.4"
Width (mm) : 442.000
Power Description
Frequency : 50/60 Hz
Frequency (Hz) : 50/60
Input Voltage : 100-240V AC
Input Voltage (V AC) : 100-240
PoE (RJ-45) Port : Yes
PoE Budget : 720W
PoE Budget (W) : 720
Power Consumption (W) : 150
Power Source : AC, DC
Warranty
Limited Warranty : 1 Year
Miscellaneous
Features : 238.09 Mpps Forwarding Rate, 320 Gb/s Switching Capacity
