Product Overview

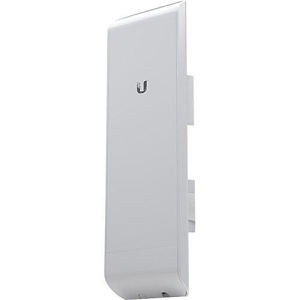

With the airMAX NanoStation M2 from Ubiquiti Networks, you can provide your clients with reliable long-range network connections. Designed to support both Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) configurations, this Customer Premises Equipment (CPE) bridge features a panel antenna with dual-polarity 10.4 to 11.2 dBi gain to communicate with wireless devices over the 2.4 GHz signal band. It also includes a 400 MHz Atheros MIPS 24Kc processor with 32MB of memory and 8MB of flash storage, which can all be powered by connecting the included passive power-over-Ethernet (PoE) adapter to the main 10/100 Mb/s Ethernet port while using the secondary port to carry data and power to compatible devices such as IP security cameras. With its UV stabilized plastic enclosure, the airMAX NanoStation M2 may be mounted either indoors or outdoors with the included pole mount. Use the airOS software for configuration and management.
General Information
Name : Ubiquiti NSM2(US) airMAX NanoStation M2, 2.4 GHz , Ubiquiti
Category : Wireless Access Points
UPC Code : 810354020230
Country of Origin : +1. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : KX-NSM2US
Brand Name : Ubiquiti
Manufacturer : Ubiquiti Inc.
Manufacturer Part Number : NSM2(US)
Product Line : UISP
Product Model : NSM2(US)
Product Name : Ubiquiti Networks airMAX NanoStation M2 Single-Band Indoor / Outdoor CPE Bridge
Product Series : airMAX
Product Type : Nanostation
Weight (Approximate) (g) : 400
Technical Information
MIMO Technology : Yes
Outdoor Antenna Range : 8.1 Mile
Outdoor Antenna Range (mm) : 13000000
Power Consumption : 8W
USB : No
Wireless LAN Standard : IEEE 802.11n
Wireless Transmission Speed : 150 Mbit/s
Wireless Transmission Speed (Bps) : 19660800
Interfaces/Ports
HDMI : No
Management Port : No
Number of Network (RJ-45) Ports : 2
PoE PD Port : Yes
Powerline : No
VGA : No
Network & Communication
Ethernet Technology : Ethernet, Fast Ethernet
Physical Characteristics
Depth : 1.2"
Depth (mm) : 31.000
Form Factor : Pole Mount
Height : 11.6"
Height (mm) : 294.000
Weight (Approximate) : 14.11 oz
Width : 3.1"
Width (mm) : 80.000
Power Description
PoE (RJ-45) Port : No
Power Consumption (W) : 8
Tuner
Frequency Band : 2.4 GHz
Frequency Band (Hz) : 2400000000
Miscellaneous
Environmental Certification : CE, FCC Part 15.247, IC RS210
Environmentally Friendly : Yes
Package Contents : <ul> <li>NanoStationM NSM2 Wireless Bridge</li> <li>Pole-Mount Kit</li> </ul>
