Product Overview

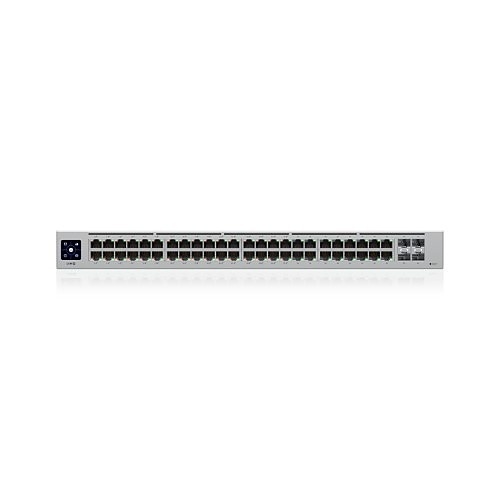

Grow your business's network capacity to support computers, printers, storage, and power over Ethernet devices with the UniFi 48-Port Gigabit PoE+ Compliant Managed Switch from Ubiquiti Networks. Featuring a desktop or rack-mountable design, this Layer 2 managed switch includes 48 Gigabit Ethernet ports, 32 of which are PoE+ complaint and support up to 32W per port to operate compatible devices such as security cameras and IP phones. Four Gigabit SFP ports are also available for fiber uplink connections. Network traffic with connected devices can be further optimized using the UniFi Network Controller, which offers a comprehensive suite of features to configure, control, and monitor performance. Additionally, its fanless design helps the switch to operate silently in the background of your home office or business.
Main Features
- Auto-Sensing IEEE 802.3af/at PoE
- Fiber Connectivity; SFP ports enable network uplinks of up to 1 Gbps
- Fanless, Silent Cooling; The UniFi PoE Switch features fanless, silent thermal cooling, so it can be deployed in areas where fan noise would be distracting
- Switching Performance; The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
- 802.3af/at PoE; PoE support simplifies your network infrastructure and cabling; PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras
General Information
Name: Ubiquiti USW-48-POE 48-Port Standard 48 PoE Layer 2 Switch
Category: Ubiquiti, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 810010072139
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number KX-USW48POE Brand Name Ubiquiti Manufacturer Ubiquiti Inc. Manufacturer Part Number USW-48-POE Product Line UniFi Product Model USW-48-POE Product Name Ubiquiti Networks UniFi 48-Port Gigabit PoE+ Compliant Managed Switch Product Series USW Product Type Network Switch
Material SGCC Steel Media Type Supported Optical Fiber, Twisted Pair PoE Yes Power Consumption 45W
Expansion Slot Type SFP (mini-GBIC) Number of SFP Slots 4 Number of SFP+ Slots 4 Number of Total Expansion Slots 4 Shared SFP Slot No
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 48 Uplink Port Yes
Manageable Yes
Network Technology 10/100/1000Base-T, 1000Base-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2
Color Gray Compatible Rack Unit 1U Depth 11.2" Form Factor 1U Height 1.7" Weight 9.9lb Width 17.4"
Frequency 50 Hz, 60 Hz Input Voltage 100-240V AC PoE (RJ-45) Port Yes PoE Budget 195W Power Source AC, DC
Length 20.5"
Limited Warranty 1-Year
Environmental Certification CE, FCC Environmentally Friendly Yes Features Fanless, silent cooling, Integrated Touchscreen
