Product Overview
Grade 5 Hex Cap Screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 Hex Cap Screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of Grade 5 Hex Cap Screws and ASME B18.2.1 covers the dimensional requirements.
General Information

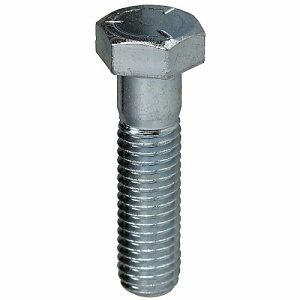

Name : Dottie 5MB5164 Screw, 5/16''-18 4'' Grade Hex Head Cap Screw , Dottie
Category : Screws
UPC Code : 00781002180234
Specifications
General Information
ADI Part Number : LH-5MB5164
Brand Name : Dottie
Connecting Thread Type : 2A
Head Diameter : 0.500'' - 0.489''
Manufacturer : L.H. Dottie
Manufacturer Part Number : 5MB5164
Package Length : 6.2
Package Net Weight : 3.82
Packaged Quantity : 50
Product Model : 5MB5164
Product Name : 5/16''-18 x 4'' Grade 5 Hex Head Cap Screw
Product Type : Screw
Technical Information
Material : Medium Carbon Steel
Physical Characteristics
Product Material : Medium Carbon Steel
Product Information
Fastener Type : Cap Screw
Finishing : Zinc Plated
Head Type : Hex
Maximum Fractional Diameter : 0.31"
Maximum Fractional Diameter (mm) : 7.874
Maximum Length : 4"
Maximum Length (mm) : 101.6
Threads Per Inch (TPI) : 18
Miscellaneous
Certifications & Standards : Yes
Environmental Certification : California Proposition 65, RoHS
Environmentally Friendly : Yes
