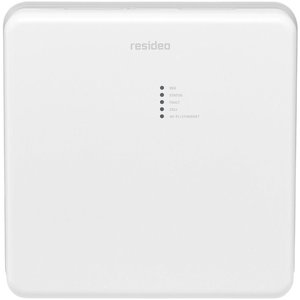

Resideo LTEM-PA Advanced Modular Communicator, AT&T, (Replaces VISTAGSMCN4G)
LTEM-P|LTEM-PA
Resideo LTEM-PA Advanced Modular Communicator, AT&T, (Replaces VISTAGSMCN4G)
LTEM-P|LTEM-PA
Resideo
Resideo LTEM-PA Advanced Modular Communicator, AT&T, (Replaces VISTAGSMCN4G)
LTEM-PÂ |Â LTEM-PA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
LTEM-P Communicators utilize the latest LTE® technology specifically designed for loT devices to communicate with AlarmNet®. The CAT-M1 LTE technology, used by leading carriers, has greater signal strength and power efficiency, improving performance underground and within structures. LTE CAT-M1 technology is available everywhere that current LTE networks reach with strong enough reception for consistent connections. The LTEM-P Communicators easily connect to customers' security system control panels and sends alarms and messages to AlarmNet for transfer to the central monitoring station. The LTEM-P Line includes the following models: LTEM-PV (Verizon® network) & LTEM-PA (AT&T® network)
The LTEM-P Line also supports these optional plug-in modules:
- LTE CAT-1 Cell Radio Module for enhanced cellular radio features (model PROLTE series)
- Wi-Fi®/Z-Wave® Module for Wi-Fi connection to the Internet and/or for control of home automation devices (model PROWIFIZW)
- Dialer Capture Module for use with control panels that send Contact ID signals via Dialer (model PRODCM)
- Wi-Fi Module for Wi-Fi connection to Internet
Main Features
- Quick connection to both Resideo control panels (ex. VISTA controls) and compatible non-Resideo (non-VISTA) control panels
- Supports both ECP and Bus connections to compatible control panels
- Power supplied by a 9V DC Power Adapter (included)
- Supports dynamic or static IP addressing, and installs behind firewalls without compromising network security (provided that the Communication Path includes IP)
- Supports connection to the Internet via Ethernet cable or WiFi – only one method can be used, Ethernet or WiFi, not both
- Reports alarms and status messages via the Internet
- Reports messages via cell as backup to Internet reporting (provided that the Communication Path includes cell)
- Allows uploading and downloading of VISTA control panel data
- Supports Remote Services feature, which allows the end user to access their security system from their computer via a website.
- Multi-function Test switch used to generate test messages
General Information
Name: Resideo LTEM-PA Advanced Modular Communicator, AT&T, (Replaces VISTAGSMCN4G)
Category: Resideo, Intrusion, Intrusion, Alarm Communicators & Equipment, Wireless Intrusion, Alarm Communicators, Monthly Sales Flyer
UPC Code: 194160005682
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number LTEM-PA Brand Name Resideo Card Type 0% RH - non-condensing Manufacturer Resideo Manufacturer Part Number LTEM-PA Product Model LTEM-P Product Name LTEM-PA Advanced Modular Communicator (AT&T) Product Type Burglar Alarm Communicator Â
-
Cellular Generation 4G LTE Connectivity Technology Wireless Wireless LAN Yes Â
-
Communication Technology Internet, Radio Ethernet Yes Sensor Connectivity Wireless Â
-
ADI Part Number Replaces VISTAGSMCN4G Model Number Replaces VISTAGSMCN4G Â
-
Application/Usage Internet Communications, Radio Communications Color White Color Family White Depth 9.1" Height 9.1"|23.3 cm Weight (Approximate) 1.54 lb Width 2.2"|5.7 cm Â
-
Input Voltage 9V DC Â
-
Installation Type Professional Install Â
-
Compatibility Interlogix NX-4, NX-6, NX-8, NX-8E DSC PC1616 , PC1832, PC1864, Total Connect 2.0, VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-15P, VISTA-20P, VISTA-21iP w/internal communicator, VISTA-250BP, VISTA-250BPE, VISTA-250BPT Features Allows uploading and downloading of VISTA control panel data, Multi-function Test switch used to generate test messages, register the communicator with AlarmNet, enter Pairing mode (used during WiFi module installation), reboot the communicator, and to reset the communicator to factory default settings., Power supplied by a 9VDC Power Adapter (included), Quick connection to both Resideo control panels (ex. VISTA controls) and compatible non-Resideo (non-VISTA) control panels, Reports alarms and status messages via the Internet, Reports messages via cell as backup to Internet reporting (provided that the Communication Path includes cell), Supports both ECP and Bus connections to compatible control panels, Supports connection to the Internet via Ethernet cable or WiFi (WiFi requires installation of PROWIFIZW or PROWIFI module) – only one method can be used, Ethernet or WiFi, not both, Supports dynamic or static IP addressing, and installs behind firewalls without compromising network security (provided that the Communication Path includes IP), Supports Remote Services feature, which allows the end user to access their security system from their computer via a website. Availability of this service is controlled by the dealer via the web-based programming tool on the AlarmNet 360 website Package Contents LTEM-PA Advanced Modular Communicator (AT&T) 9VDC Power Adapter Â
