Leviton 16R19-UR Male Panel Receptacle, 90°, 1/2 Tapped Terminal, 2-4/0, Red
16R19-UR
|LV-16R19UR
Shop all Leviton
Leviton 16R19-UR Male Panel Receptacle, 90°, 1/2 Tapped Terminal, 2-4/0, Red
16R19-UR | LV-16R19UR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

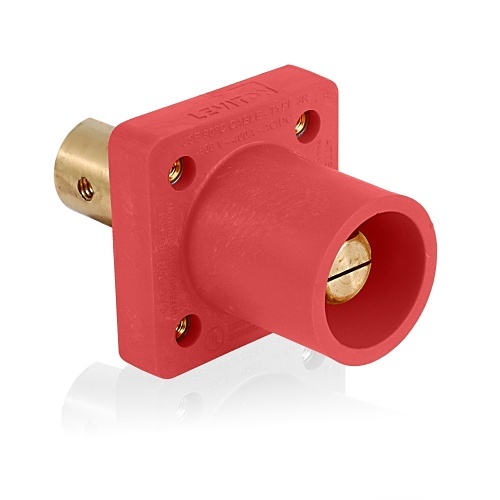

16 Series Single Pole Cam Type Male Panel Mount Receptacle, 90-Degree, Half Round w/ Tapped Hole, Cable Size #2 - 4/0, 400 Amp Max, Red Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- 16 Series Male Panel Mount Receptacle
- 90-Degree, Half Round Design
- Cable Size #2 - 4/0, 400 Amp Max
- Red Color for Easy Identification
- Easy Assembly and Disassembly
- NEMA 3R Rated for Outdoor Use
- Cylindrical Profile Reduces Snap
- UL: 1691, 508 - 35k A / 600V Rating
- Ideal for Temporary Power Applications
- Suitable for Entertainment, Oil & Gas, Mining
General Information
Name: Leviton 16R19-UR Male Panel Receptacle, 90°, 1/2 Tapped Terminal, 2-4/0, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-16R19UR Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 16R19-UR Product Line Rhino-Hide Product Name Male Receptacle, 90-Degree, #2 - 4/0 AWG, Half Round w/ Tapped Hole Product Series 16 Product Type Power Socket
Color Red
Current Rating 400 A Voltage Rating 600V AC
Certifications & Standards CSA Standard : 1691UL : 1691 Country of Origin MX
