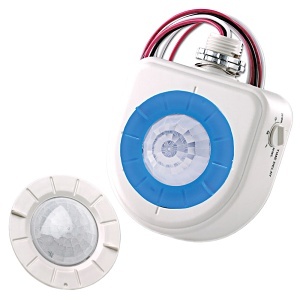

Leviton OSFHU-CTW High-Bay Fixture Mount Occupancy Sensor Lighting Control, Adjustable 360° Low Bay and High Bay Lenses, Aisle Mask, Cold Storage, PIR, 120/208/220/230/240/277/347V, 50/60 Hz
OSFHU-CTW
|LV-OSFHUCTW
Shop all Leviton
Leviton OSFHU-CTW High-Bay Fixture Mount Occupancy Sensor Lighting Control, Adjustable 360° Low Bay and High Bay Lenses, Aisle Mask, Cold Storage, PIR, 120/208/220/230/240/277/347V, 50/60 Hz
OSFHU-CTW | LV-OSFHUCTW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
High-Bay Fixture Mount Occupancy Sensor lighting control, Adjustable 360° Low Bay (8'-20') and High Bay (20'-40') Lenses, Aisle Mask, Cold Storage, Passive Infrared Technology, 120/208/220/230/240/277/347V; 50/60H. Quick-snap threaded nipple, Instant Start-up, Return-to-last state after power outage, Auto-Sensitivity gain from temperature increase, False-detection protection, Super Bright Green LE. USMCA Compliant, Commercial Grade - White, Title 24 Compliant, ASHRAE 9.1 Compliant, The OSFHU high-bay occupancy sensor is specifically designed for high mounted areas such as warehouses, manufacturing and other high ceiling application. The OSFHU installs directly to an industrial fluorescent luminaire or an electrical junction bo. It is a self-contained sensor and relay that turns individual light fixtures on or off based on occupancy in the detection zon. It comes with three interchangeable lenses for use in either a 360-degrees high-bay or 360-degrees low-bay general area or an aisle wa. The OSFHU provides reliable coverage up to 40 f. Mounting height. The OSFHU is also available in a model for cold storage applications with temperatures as low as -40-degrees . To improve the field-of-view for deep body fixtures, a separate offset adapter accessory (OSFOA-00W) can be used to position the sensor below the fixture bod. The adapter simply snaps into a 1/2-inch knockout on the end of the industrial fixture to attach the sensor.
Main Features
- Quicksnap; built into the 1/2” nipple, this locking mechanism allows for the fastest and easiest mounting not requiring a threaded lock-nut
- Reduce time and materials; easily reach the ballast at either end of the fixture without requiring more wire or connectors with the included 21” wire leads
- Fast, easy time delay setting; can be set at any time without requiring power to the sensor; time delay is variable from 30s-20m
- Instantly verify fixture operation and wiring connections; “instant ON” closing relay fires lamps in under 5 seconds
- High Inrush Stability (... Technology); Zero crossing circuitry optimizes relay operation for reliable, long-life operation Robust mechanical latching relay is durable for all load types
- Adjusts the PIR sensitivity as ambient temperature rises to increase detection of heat movement through the field-ofview
- Return to last state; for safety and energy savings, the OSFHU contains a latching relay so that in the event power is lost to the device, the device will return to the last known state of the relay
- False detection intelligence; for increased energy savings and to mitigate nuisance tripping, the super bright LED indicates advanced detection has been activated and the lights will only turn ON when true occupancy has been determined
General Information
Name: Leviton OSFHU-CTW High-Bay Fixture Mount Occupancy Sensor Lighting Control, Adjustable 360° Low Bay and High Bay Lenses, Aisle Mask, Cold Storage, PIR, 120/208/220/230/240/277/347V, 50/60 Hz
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-OSFHUCTW Brand Name Leviton Manufacturer Part Number OSFHU-CTW
Application/Usage Aisle, Cold Storage, High ceiling applications, Manufacturing facilities, Warehouses Maximum Time Delay 20-Minute Sensor Type Occupancy
Color White
Input Voltage 120-347V AC
Mount Type Fixture Mount
Limited Warranty 5-Year
