Product Overview

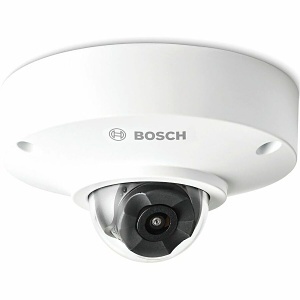

The FLEXIDOME micro 3100i is discreet and compact by design, offering high-quality imaging for 24/7 surveillance. It includes IVA Pro Buildings deep-learning-based video analytics for reliable detection in and around buildings and a built-in Secure Element for the highest level of data security. This environmental variant leverages IK10 and IP66 ratings, making the housing durable for outdoor and vandal-prone indoor applications. Unique corner and L-shape wall mounts enable discreet mounting. Additionally, the cameras are compatible with the Bosch Modular Mounts.
General Information
Name : Bosch NUE-3703-F04 Bullet IP Camera , Bosch
Category : Bullet Cameras
UPC Code : 800549369800
Country of Origin : Thailand. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : PB-NUE3703F4
Brand Name : Bosch
Manufacturer : The Bosch Group
Manufacturer Part Number : NUE3703F04
Product Line : FlexiDome Micro
Product Model : NUE-3703-F04
Product Name : FLEXIDOME micro 3100i NUE-3703-F04 Network Camera
Product Series : 3100i
Product Type : Network Camera
Weight (Approximate) (g) : 480
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 5MP
Field of View : Horizontal: 100.8°, Vertical: 69.2°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 3.2
Maximum Frame Rate : 30 fps
Camera
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color, Monochrome
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Maximum Operating Temperature (°F) : 122
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 93%
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 3.2 mm
Lens Included : Yes
Maximum Focal Length : 3.20 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 123
Durability : Impact Resistant, Vandal Resistant, Water Resistant
Form Factor : Micro Dome
Height : 2.7"
Height (mm) : 69.2
Product Color : Signal White
Weight (Approximate) : 1.06 lb
Product Information
Diameter : 4.8"
Mount Type : Surface Mount
Projection Lens
Minimum Focal Length (mm) : 3.2
Storage
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Miscellaneous
Environmental Certification : EU RoHS, EU WEEE
Environmentally Friendly : Yes
Features : Alarm Triggering, Back Light Compensation (BLC), Day/Night, Human Detection, Ingress Protection, Privacy Masking, Tamper Detection, Vehicle Detection, Video Content Analytics, White Balance
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
Package Contents : <ul><li> FLEXIDOME micro 3100i device</li><li> 1 x TR15 key</li><li> 1 x Mounting sticker</li><li> 1 x Quick installation guide</li><li> 1 x Safety and security information</li><li> 3 x Installer UX label</li><li> 1 x RJ45 guider</li></ul>
