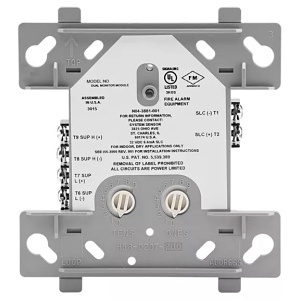

Silent Knight SK-MONITOR-2 Addressable Dual Input Monitor Module
Silent Knight SK-MONITOR-2 Addressable Dual Input Monitor Module
- Monitor two circuits with unique addresses simultaneously
- Rotary address switches for fast installation
- Support for Class BWiring
- Monitor two circuits with unique addresses simultaneously
- Rotary address switches for fast installation
- Support for Class BWiring
- Monitor two circuits with unique addresses simultaneously
- Rotary address switches for fast installation
- Support for Class BWiring
Silent Knight SK-MONITOR-2 Addressable Dual Input Monitor Module
SK-MONITOR-2 | SK-MONITOR2
Please sign in to view pricing and availability and to add to cart.
Recommended
Product Overview
The SK-MONITOR-2 module is capable of monitoring two separate Class B circuits simultaneously, making it ideal for waterflow tamper switch and flow switch monitoring. The SK-MONITOR-2 is an addressable monitor module with two initiating circuits for use with Honeywell Silent Knight series fire alarm control panels (FACPs). The SK-MONITOR-2 acts as an interface to contact devices, such as waterflow switches and pull stations. Supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
INSTALLATION
SK-MONITOR-2 mounts directly into a 4" square electrical box. The box must have a minimum depth of 2-1/8". A surface mount electrical box (System Sensor® part number SMB500) is available from Silent Knight
Main Features
- Monitor two circuits with unique addresses simultaneously
- Rotary address switches for fast installation
- Support for Class BWiring
- Bright white cover plate
- SEMS screws for easy wiring
- UL listed
General Information
Specifications
-
ADI Part Number SK-MONITOR2 Brand Name Silent Knight by Honeywell Manufacturer Honeywell International, Inc Manufacturer Part Number SK-MONITOR-2 Product Name SK-Monitor-2 Addressable Dual Input Monitor Module Product Type Addressable Monitor Module
-
Device Supported Fire Alarm, Fire Panel, Pull Station, Smoke Detector, Switch, Waterflow Switch
-
Color White Color Details - Ivory - Cover
Depth 1.3" Height 4.5" Product Color Ivory Width 4"
-
Compatibility Honeywell SilentKnight Addressable Fire Alarm Control Panels: 6820 6820EVS 6808 6700 Honeywell IntelliKnight Addressable Fire Alarm Control Panels: 5700 5808 5820XL 5820XL-EVS Country of Origin MX Features Monitored, Tamper Switch
