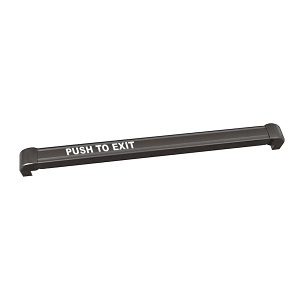

Securitron TSB-BKT Touch Sense Bar with Trailing EDGE Timer, 36"
TSB-BKT
|SN-TSBBKT
Shop all Securitron by ASSA ABLOY
Securitron TSB-BKT Touch Sense Bar with Trailing EDGE Timer, 36"
TSB-BKT | SN-TSBBKT
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Main Features
- Can be field cut to accommodate non-standard openings up to 48"
- Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
- Backup push button
- 16 ft [4.8m] 22AWG 6 conductor cable and armored door cord included
- Operates on either 12 or 24 VDC
- Available ElectroLynx ready
General Information
Name: Securitron TSB-BKT Touch Sense Bar with Trailing EDGE Timer, 36"
Category: Securitron by ASSA ABLOY, Access Control, Egress Devices & Alarms, Exit Door Bars
UPC Code: 784607041146
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-TSBBKT Brand Name Securitron by ASSA ABLOY Manufacturer Part Number TSB-BKT
Armored Yes Door Supported Inswing Door, Outswing Door, Single Door
Dimensions 3" x 3" x 12" Height 3" Width 3"
Length 12"
Country of Origin US
