Specifications
General Information
ADI Part Number : SO-O4FD2M
Brand Name : Speco Technologies
Manufacturer : Speco Technologies
Manufacturer Part Number : O4FD2M
NDAA Compliant : Yes
Packaged Quantity : 12
Product Condition : New
Product Line : Flexible Intensifier
Product Model : O4FD2M
Product Name : O4FD2M
Product Series : Flexible Intensifier

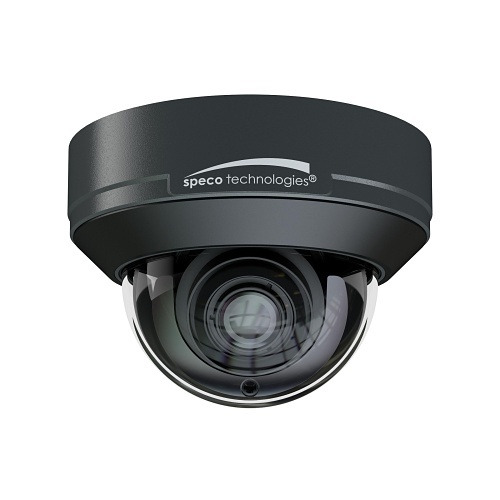

Product Type : Dome Camera
Weight (Approximate) (g) : 930
Technical Information
Effective Camera Resolution : 4MP
Field of View : Horizontal: 109° to 46° Vertical: 74.5° to 27.1° Diagonal: 116° to 52.4°
HD Recording : Yes
Lens Mount Type : 14 mm
Lens Type : Motorized
Maximum Aperture : f/1.2
Maximum Focal Length (mm) : 12
Night Vision : Yes
Night Vision Type : IR
Number of IR LEDs : 3
Optical Zoom : 4x
Power Consumption (PoE) (W) : 9
Audio
Master (outer) Case Height (mm) : 400
Master (outer) Case Length (mm) : 565
Master (outer) Case Weight (g) : 23800
Master (outer) Case Width (mm) : 365
Shipping (Inner) Case Gross Weight (g) : 1896
Shipping (inner) Case Height (mm) : 180
Shipping (inner) Case Length (mm) : 189
Shipping (inner) Case Net Weight (g) : 1896
Shipping (inner) Case Width (mm) : 180
Shipping Weight (Approximate) (g) : 1896
Camera
Night Vision Distance : 1968"
Night Vision Distance (mm) : 50000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color, Monochrome
Maximum Video Resolution : 4MP
Minimum Illumination (lux) : 0
Number of Sensors : 1
Environmental Conditions
Maximum Operating Temperature : 140°F
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -22°F
Minimum Operating Temperature (°F) : -22
Operating Humidity : >95 % (non-condensing)
Storage Temperature (T-T) (°F) : -22 to 149
Exposure
Longest Shutter Speed : 1 s
Minimum Illumination : 0.0009 lux
Shortest Shutter Speed : 1/100000 s
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-12 mm
Lens Included : Yes
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : Gray
Depth (mm) : 142.5
Durability : Vandal Resistant, Weather Resistance
Form Factor : Dome
Height : 3.94"
Package Type : Paper Box
Weight (Approximate) : 2.05 lb
Width (mm) : 142.5
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 5.55"
Length (mm) : 100.3
Mount Type : Corner Mount, Junction Box Mount, Pole Mount, Wall Mount
Operating Temperature (T-T) (°F) : -22 to 140
Projection Lens
Minimum Focal Length (mm) : 2.8
Video
Analog Video Signal Format : CVBS
Horizontal Resolution : 2576
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 5 Year
Miscellaneous
Environmental Certification : EC, EU RoHS, REACH, WEEE
Environmentally Friendly : Yes
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor, Outdoor
Ingress Protection Rating : IP67

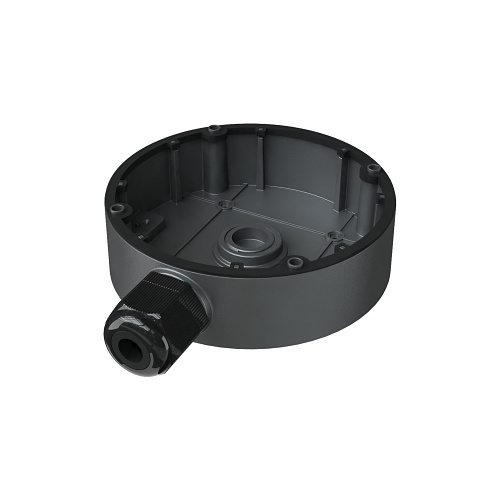

Package Contents : Camera, Screws, QSG, CD, Drill Template, Junction Box
