Product Overview

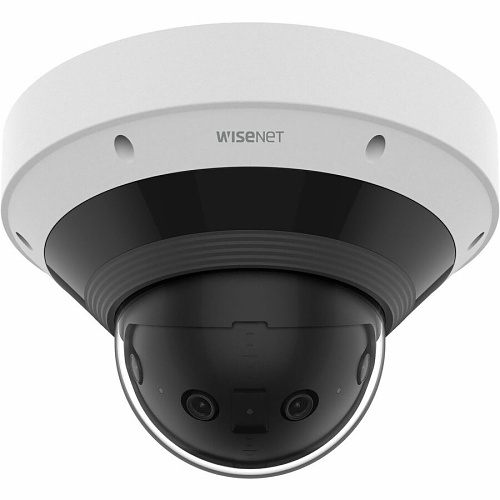

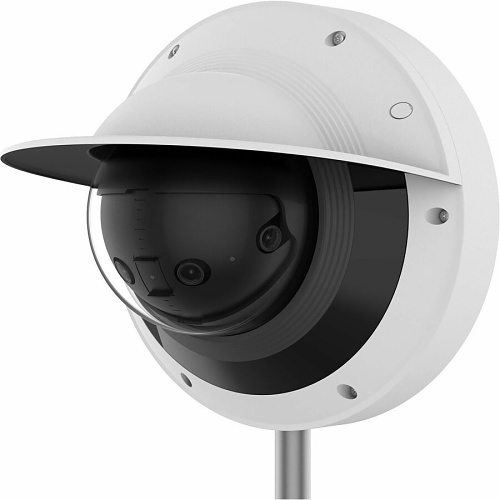

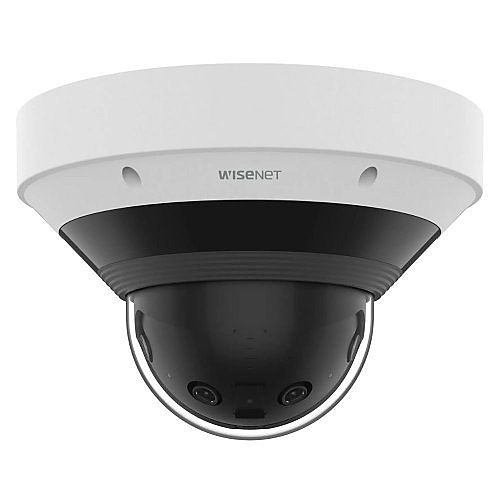

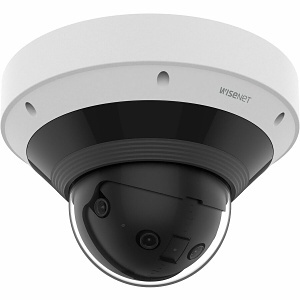

Night Vision Outdoor Dome Panoramic IP Security Camera.
General Information
Name : Hanwha PNM-C9022RV/KEX Series 8MP AI IR Panoramic IP Camera, 2.8mm Fixed Lens, White, TAA Compliant , Hanwha Vision
Category : Panoramic Cameras
UPC Code :
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-C922RVKEX
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : PNM-C9022RV/KEX
Product Model : PNM-C9022RV
Product Name : 8MP AI IR Panoramic Camera
Product Series : P
Product Type : Network Camera
Weight (Approximate) (g) : 2900
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 8MP
Field of View : H: 209°, V: 60°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2.0
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 20 fps
Night Vision : Yes
Night Vision Type : Infrared
Camera
Night Vision Distance : 65.62 ft
Night Vision Distance (mm) : 20000
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 8000000
Maximum Video Resolution : 1600 x 1200
Number of Sensors : 4
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.80 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 253
Form Factor : Dome
Product Color : White
Weight (Approximate) : 6.39 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 10"
Storage
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 20
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Gain Control, Human Detection, Motion Detection, Noise Reduction, Tamper Detection, Vehicle Detection, Video Content Analytics, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
TAA Compliant : Yes
