Product Overview
Wisenet AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based Wisenet AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation. Metadata including attribute (people : age, gender, colors of top/bottom clothes, wearing glasses, Vehicle : types, colors) is sent to the backend server and used to extract information on specific situations, significantly reducing the time to search the entire video. And Wisenet P series AI cameras are equipped with the BestShot feature for re-identification which ensures that only the most suitable images of classified objects are sent to the backend server. Wisenet P seires AI cameras can also quickly and accurately detect the objects with or without face mask and immediately sends out alert.
General Information

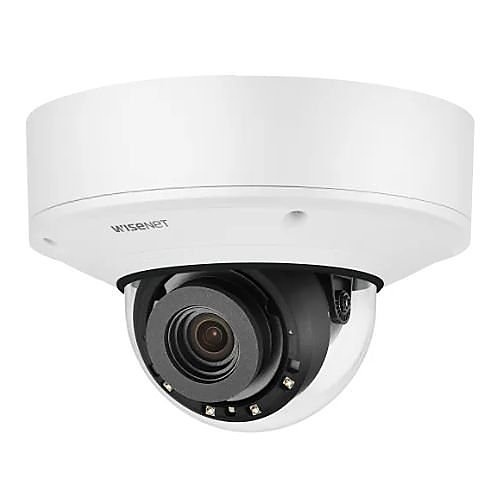

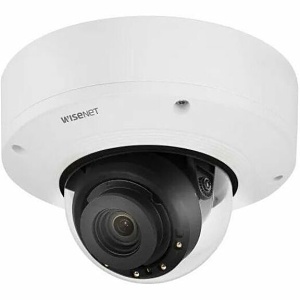

Name : Hanwha PNV-A6081R/KAP Series 2MP AI Outdoor IR Vandal Dome IP Camera, 4.38-9.33mm Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089199294
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-PA681RKAP
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : PNV-A6081R/KAP
Product Model : PNV-A6081R
Product Name : PNV-A6081R 2MP Network AI IR Vandal Dome Camera
Product Series : P
Product Type : Network Camera
Weight (Approximate) (g) : 1900
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : H:103.1°(Wide)~44.5°(Tele) / V:54.2°(Wide)~24.9°(Tele) / D:124°(Wide)~51.1°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.3
Maximum Focal Length (mm) : 9.33
Maximum Frame Rate : 120 fps
Minimum Focal Length : 4.38 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 2.1x
Camera
Night Vision Distance : 131.23 ft
Night Vision Distance (mm) : 40000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -58°F (-50°C)
Minimum Operating Temperature (°F) : -58
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 4.38-9.33 mm
Lens Included : Yes
Maximum Focal Length : 9.33 mm
Minimum Aperture : f/2.15
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 180
Durability : Vandal Resistant
Form Factor : Dome
Product Color : White
Weight (Approximate) : 4.19 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 7.1"
Mount Type : Conduit Mount, Gang Box Mount, Hanging Mount
Projection Lens
Minimum Focal Length (mm) : 4.38
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 120
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66, IP67, IP6K9K
TAA Compliant : Yes
