Product Overview

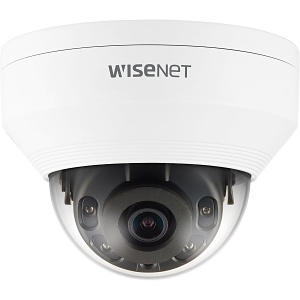

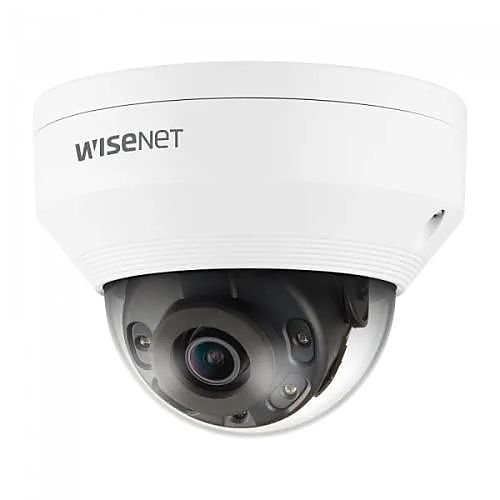

Monitor an outdoor area with the white QNV-8010R 5MP Network Dome Camera from Hanwha Techwin.
General Information
Name : Hanwha QNV-8010R/KME Series 5MP IR Vandal Resistant Dome IP Camera, 2.8mm Fixed Lens, White, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089188144
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-QNV801KME
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : QNV-8010R/KME
Product Model : QNV-8010R
Product Name : 5 MP Network IR Vandal Resistant Dome Camera with 2.8mm Lens
Product Series : Q
Product Type : Network Camera
Weight (Approximate) (g) : 508.023
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 5MP
Field of View : H: 104.7°/ V: 76.5°/ D: 136.0°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2.0
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 30 fps
Night Vision : Yes
Night Vision Type : Infrared
Camera
Night Vision Distance : 65.62 ft
Night Vision Distance (mm) : 20000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.80 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 120.3
Durability : Vandal Resistant
Form Factor : Dome
Product Color : White
Weight (Approximate) : 1.12 lb
Product Information
Diameter : 4.7"
Mount Type : Ceiling Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.8
Storage
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Built-in Mechanical ICR, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
TAA Compliant : Yes
