Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras' deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
General Information

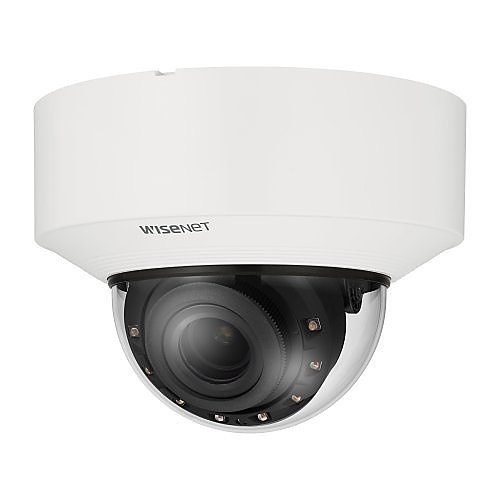

Name : Hanwha XND-C8083RV/KEX Series 6MP AI Indoor IR Vandal Dome IP Camera, 4.4-9.3mm Motorized Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089207951
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XC883RVKX
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XND-C8083RV/KEX
Product Model : XND-C8083RV
Product Name : 6MP AI IR Dome Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 1350
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 6MP
Field of View : H : 112.1°(Wide)~47.5°(Tele) V : 58.0°(Wide)~26.6°(Tele) D : 137.5°(Wide)~54.6°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.3
Maximum Focal Length (mm) : 9.3
Maximum Frame Rate : 30 fps
Minimum Focal Length : 4.40 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 2.1x
Camera
Night Vision Distance : 131.23 ft
Night Vision Distance (mm) : 40000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 6000000
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Maximum Operating Temperature (°F) : 122
Minimum Operating Temperature : 14°F (-10°C)
Minimum Operating Temperature (°F) : 14
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 4.4-9.3 mm
Lens Included : Yes
Maximum Focal Length : 9.30 mm
Minimum Aperture : f/2.15
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 160
Form Factor : Dome
Product Color : White
Weight (Approximate) : 2.98 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 6.3"
Mount Type : Hanging Mount
Projection Lens
Minimum Focal Length (mm) : 4.4
Storage
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection, Tamper Detection, Wide Dynamic Range
Impact Protection Rating : IK08
Indoor/Outdoor : Indoor
Ingress Protection Rating : IP52
TAA Compliant : Yes
