Tripp Lite B203-101-POC 1-Port USB over CAT5/CAT6 Extender Kit with Power Over Cable, USB 2.0, up to 164.04' (50M), Black
Tripp Lite B203-101-POC 1-Port USB over CAT5/CAT6 Extender Kit with Power Over Cable, USB 2.0, up to 164.04' (50M), Black
Tripp Lite B203-101-POC 1-Port USB over CAT5/CAT6 Extender Kit with Power Over Cable, USB 2.0, up to 164.04' (50M), Black
B203-101-POCÂ |Â TC-B203101PO
Please sign in to view pricing and availability and to add to cart.
Product Overview
Features
Connects Your Computer or Laptop to a USB 2.0 Device up to 164 ft. Away

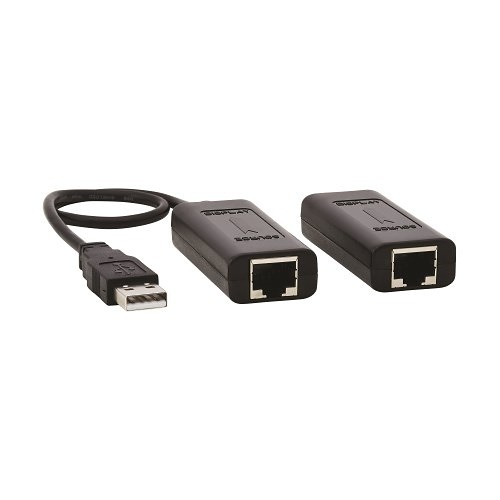

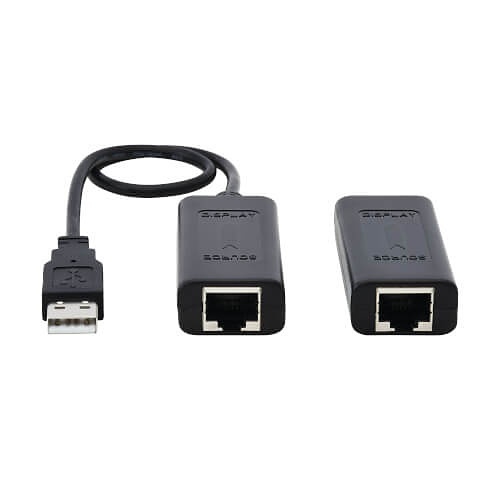

This plug-and-play extender kit is ideal for connecting your home or office computer's USB-A port to a printer, 1080p webcam, external hard drive or other USB device located up to 164 feet (50 meters) away. The B203-101-POC includes a local transmitter and a remote receiver. It sends USB 2.0 signals over user-supplied Cat5/6 cabling (such as Tripp Lite's N202-Series Cat6 Ethernet cables).
Built-In Power over Cable Technology Provides Power to Avoid Bulky Power Bricks
PoC powers the receiver over Cat5/6 cable. Green and orange LEDs on both units will light up to indicate they are receiving power and data is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transmitter and receiver away from AC outlets. Note: if connected to a high-density USB hard drive, the receiver features a USB Micro-B port for plugging a 5V external power supply (sold separately) into an AC outlet.
With Great Distance Comes Great Flexibility
By extending the USB connection beyond the standard 16-foot distance limitation to 164 feet, the B203-101-POC provides workstation flexibility to place your computer and the USB device where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.
Built-In USB Cable Offers a Fast, Easy Plug-and-Play Connection
Just connect the transmitter's USB cable to your computer's USB-A port, connect a USB 2.0 device to the receiver's USB-A port, and connect the two units with Cat5/6 cable (sold separately). You don't need to download any drivers or other software.
Typical Applications
- Connect an impact printer or 1080p webcam using existing in-wall Cat5/6 wiring to a computer, laptop or server located in another room
- Eliminate excessive cable clutter with the extender kit's PoC capability
- Place the computer or server in a locked cabinet or closet to protect against tampering
System Requirements
- Computer, laptop or server with USB-A port
- Windows, Mac or Chrome operating system
- Cat5/5e/6/6a cabling
Main Features
- Extends USB 2.0 data transfers up to 164' (50 m) using Cat5/5e/6/6a cabling
- Power over Cable (PoC) technology provides power to the receiver via cable
- Supports USB 2.0 speeds up to 480 Mbps to ensure reliable data transfers
- Widely compatible transmitter/receiver works with Windows, Mac and Chrome OS
- Plug-and-play operation with no software required for easy, immediate installation
- 1-year limited warranty
General Information
Specifications
-
ADI Part Number TC-B203101PO Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number B203-101-POC NDAA Compliant Yes Product Model B203-101-POC Product Name B203-101-POC Video Extender Transmitter/Receiver Product Type Video Extender Transmitter/Receiver Receiver Weight (Approximate) (g) 77.111 Transmitter Weight (Approximate) (g) 77.111 Â
-
Connectivity Technology Wired Maximum Operating Distance 164' Media Type Supported Twisted Pair Number of Input Devices Supported 1 Number of Output Devices Supported 1 Wireless LAN No Â
-
Maximum Video Resolution 1920 x 1080 Â
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 2 Number of USB Ports 3 USB Yes Â
-
Maximum Operating Distance (mm) 49987.2 Twisted Pair Cable Standard Category 6 Â
-
Color Black Color Family Multicolor Product Color Black Receiver Depth 2.36" Receiver Depth (mm) 59.944 Receiver Height 0.59" Receiver Height (mm) 14.986 Receiver Weight (Approximate) 2.72 oz Receiver Width 1.02" Receiver Width (mm) 25.908 Transmitter Depth 2.36" Transmitter Depth (mm) 59.944 Transmitter Height 0.59" Transmitter Height (mm) 14.986 Transmitter Weight (Approximate) 2.72 oz Transmitter Width 1.02" Transmitter Width (mm) 25.908 Â
-
Graphics Modes Full HD Â
-
Limited Warranty 1 Year Â
-
Environmental Certification REACH, RoHS Package Contents - 1 x Transmitter Unit
- 1 x Receiver Unit
- Owner's Manual
TAA Compliant Yes Â
