Eaton Tripp Lite N785-001-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, 1804.45' (550 m), 850 nm
N785-001-SC-MM
|TC-N785001MM
Shop all Eaton Tripp Lite
Eaton Tripp Lite N785-001-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, 1804.45' (550 m), 850 nm
N785-001-SC-MM | TC-N785001MM
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

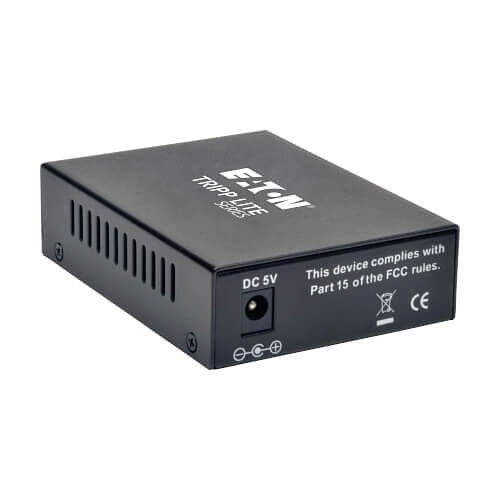

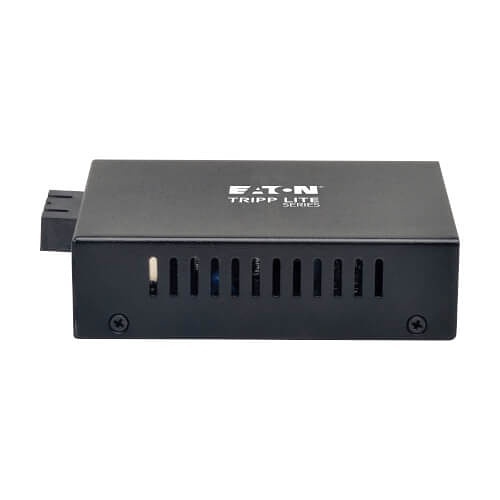

The N785-001-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter is an economical way to extend the distance of network nodes up to 550 meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
Main Features
- Gigabit Ethernet to Multimode Fiber conversion
- Supports 10/100/1000 Mbps speeds
- Range up to 550ms (1800')
- Auto-detects Full/Half Duplex mode
- Auto Negotiation MDI/MDI-X
- 850 nm wavelength for optimal performance
- Compact and small design

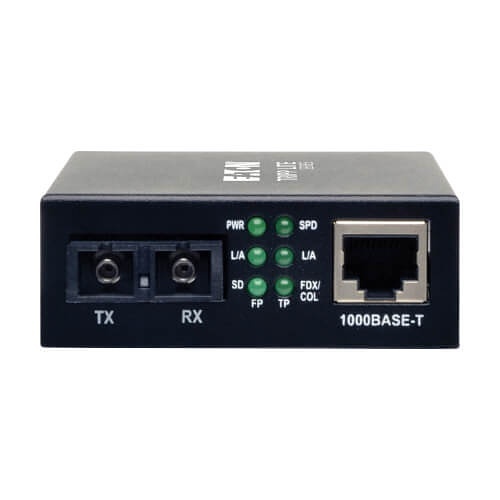

- 6 performance monitoring LEDs
- Supports Multimode 50/125 and 62.5/125 cables
General Information
Name: Eaton Tripp Lite N785-001-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, 1804.45' (550 m), 850 nm
Category: Data Comm & Networking, Network Adapters, Media Converters, ADI Pro Rewards
UPC Code: 037332184146
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-N785001MM Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N785-001-SC-MM Packaged Quantity 1 Product Model N785-001-SC-MM Product Name 10/100/1000 SC Multimode Media Converter, 550M, 850nm Product Type Transceiver/Media Converter
Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Network Technology 10/100/1000Base-T, 1000Base-SX
Ethernet Technology Gigabit Ethernet
Color Black Depth 2.8" Height 1" Weight 1lb Width 4.7"
Input Voltage 5V DC Power Source AC Adapter
Limited Warranty 2-Year
Country of Origin CN Environmental Certification WEEE Environmentally Friendly Yes Package Contents - N785-001-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter, 550 m, 850 nm
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; Output: 5V, 1.2A)
- User Manual
