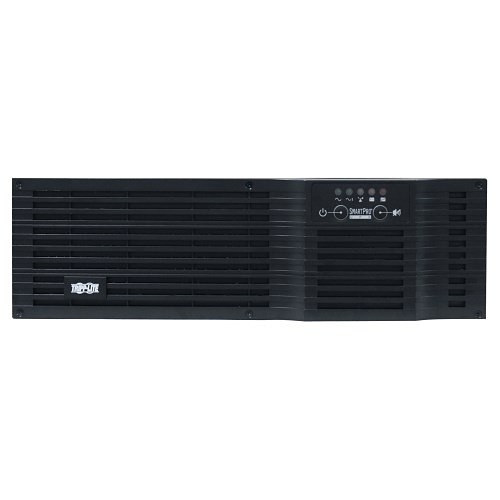

Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2KVA 1.92KW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
SM2200RMDVTAA|TC-SM2200RMD
Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2KVA 1.92KW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
SM2200RMDVTAA|TC-SM2200RMD
Tripp Lite by Eaton
Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2KVA 1.92KW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
SM2200RMDVTAAÂ |Â TC-SM2200RMD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- Maintains 120V output with 120V or 230V input, SineWave output
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
- 95% line-mode efficiency, 2 switched load banks

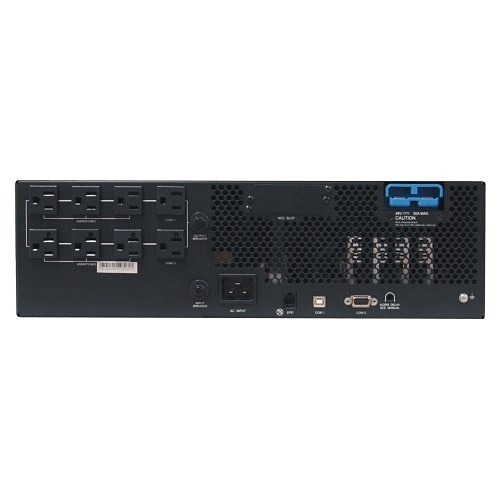

- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
General Information
Name: Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2KVA 1.92KW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332156310
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SM2200RMD Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SM2200RMDVTAA Packaged Quantity 1 Product Line SmartPro Product Model SM2200RMDVTAA Product Name SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS Product Type Line-interactive UPS Weight (Approximate) (g) 47287.005 Â
-
Backup/Run Time (Full Load) 12 Minute Backup/Run Time (Full Load) (Second) 720 Backup/Run Time (Half Load) 30 Minute Backup/Run Time (Half Load) (Second) 1800 Hot Swappable Yes Load Capacity (VA) 2200 VA Output Voltage 120V AC Output Voltage (V AC) 120 Receptacle Detail 4 x NEMA 5-15/20R, 4 x NEMA 5-15R Receptacle Type NEMA 5-15/20R, NEMA 5-15R Transfer Time 4 ms Transfer Time (Second) 0.004 Â
-
Typical Battery Recharge Time 4.50-Hour Typical Battery Recharge Time (Second) 16200 Â
-
Output Voltage (V) 120 Â
-
Serial Port Yes Â
-
Network Management SNMP Manageable Â
-
Depth 25.3" Depth (mm) 641.35 Form Factor Rack Mount, Tower Height 5.3" Height (mm) 133.35 Rack Height 3U Weight (Approximate) 104.25 lb Width 17.5" Width (mm) 444.5 Â
-
Input Voltage 110V AC, 220V AC Input Voltage (V AC) 110, 220 Â
-
Load Capacity (VA) (W) 2200VA|1920W Load Capacity (W) 2200.000 Â
-
Software Included PowerAlert Software Â
-
Limited Warranty 2-year Â
-

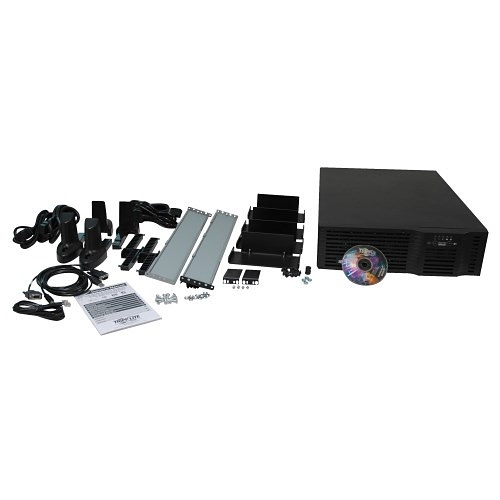

Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
- 5 x International Input Power Cables
- USB Cable
- Serial Cable
- EPO Cable
- PowerAlert Software CD
- Tower Stand Kit
- and more below
TAA Compliant Yes Â
