Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Hinged Swinging Acrylic Window

Tripp Lite SRW12USG SmartRack Low-Profile Switch-Depth Wall Mount Small Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 200lb (90.7kg), 12U

SRW12USG|TC-SRW12USG

Tripp Lite SRW12USG SmartRack Low-Profile Switch-Depth Wall Mount Small Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 200lb (90.7kg), 12U

SRW12USG|TC-SRW12USG

Sign In for Dealer Pricing

Become an ADI Customer
Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Hinged Swinging Acrylic Window
Tripp Lite by Eaton

Tripp Lite SRW12USG SmartRack Low-Profile Switch-Depth Wall Mount Small Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 200lb (90.7kg), 12U

SRW12USG | TC-SRW12USG

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

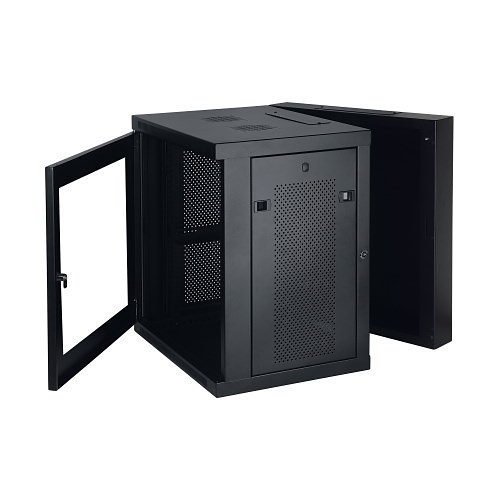

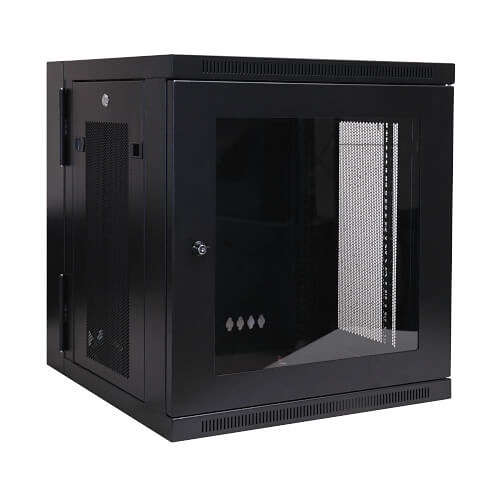

The SRW12USG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12USG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

Main Features

  • Maximum load capacity of 200 lbs
  • Swings away fromWall on hinge for easy back-door access
  • Front door includes shatter-resistant clear acrylicWindow
  • Locking steel cabinet vented at sides, top and bottom
  • Secures 12U of 19 in. rack equipment up to 20.5 in. deep

General Information

Name: Tripp Lite SRW12USG SmartRack Low-Profile Switch-Depth Wall Mount Small Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 200lb (90.7kg), 12U
Category: Tripp Lite by Eaton, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332154859
Country of Origin: China. Country of origin is subject to change.

Specifications
