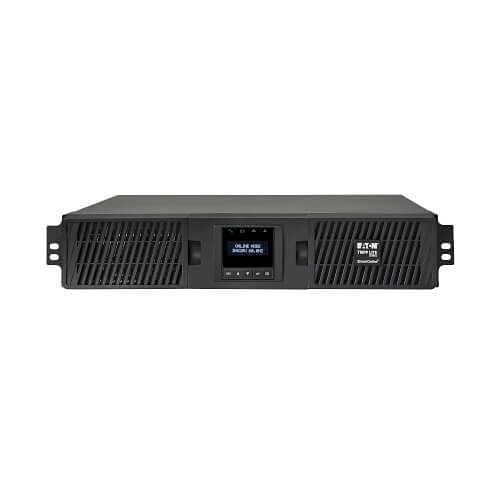

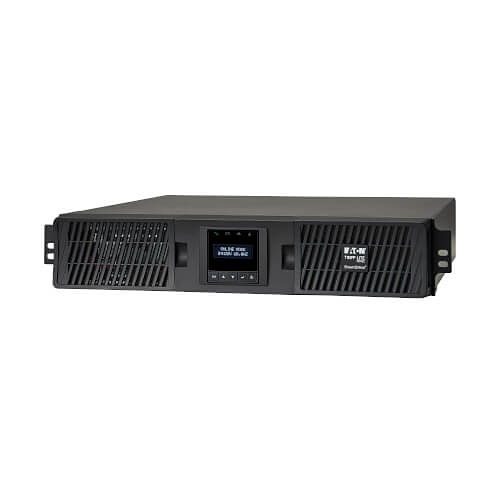

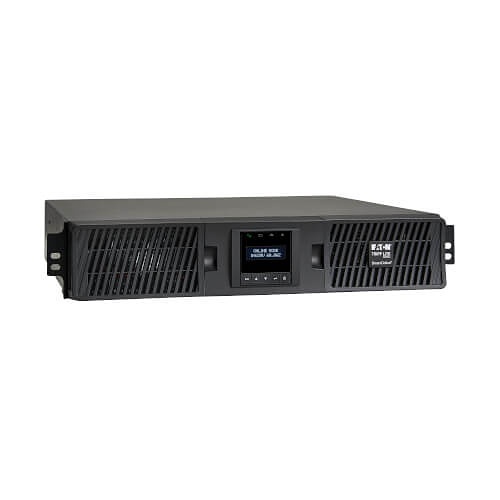

Eaton Tripp Lite SU2200RTXLCD2U Double-Conversion UPS with LCD Display, 1.8kW, 120V 2.2kVA 7 Outlets, 2U
SU2200RTXLCD2U
|TC-SU22LCD2U

Eaton Tripp Lite SU2200RTXLCD2U Double-Conversion UPS with LCD Display, 1.8kW, 120V 2.2kVA 7 Outlets, 2U
SU2200RTXLCD2U | TC-SU22LCD2U
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for network management interface options. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.
Main Features
- 2000VA 1800W Double-conversion sine wave UPS
- 7 Outlets with extended run and network card option
- LCD display for easy monitoring and control
- Hot-swappable VRLA battery modules for uninterrupted Power
- Zero transfer time between online and battery modes
- Optional network management card for remote access
- NEMA Outlets with pure sine wave AC output
- EMI / RFI Filtering for better equipment performance
- RS-232 and USB Ports for advanced communication
- Versatile installation for rack or tower configurations
General Information
Specifications
ADI Part Number TC-SU22LCD2U Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SU2200RTXLCD2U Packaged Quantity 1 Product Line SmartOnline Product Model SU2200RTXLCD2U Product Name SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS Product Type Double Conversion Online UPS Sector Data Comm & Networking
Application/Usage Education, Government, Healthcare, IT Equipment, Military, Mission Critical Equipment Backup/Run Time (Full Load) 4-Minute Backup/Run Time (Half Load) 20.2-Minute EMI/RFI Noise Filter Yes Energy Saving Yes Hot Swappable Yes Output Voltage 200V AC, 208V AC, 220V AC, 230V AC, 240V AC Overload Protection Yes Phase Single Phase Receptacle Detail 1 x NEMA L5-20R, 6 x NEMA 5-20R Receptacle Type NEMA 5-20R, NEMA L5-20R
Battery Characteristics VRLA Battery Chemistry Lead Acid Battery Recharge Time 3-Hour DC System Voltage 72 Replaceable Battery Yes
Energy Star Yes
Status Indicators Yes
Maximum Operating Elevation 9842.52' Maximum Operating Temperature 104°F (40°C) Sound Emission 47 dB
Serial Port Yes
Alarm Low Battery, Overload, Power Failure, Remote Shutdown, UPS Fault, UPS StartUp Network Management SNMP Manageable
ADI Part Number Replaces TC-2200RTXLA Model Number Replaces SU2200RTXL2UA
Depth 19" Form Factor Rack Mount, Tower Height 3.5" Rack Height 2U Weight 62lb Width 17.5"
Input Frequency 60Hz Input Voltage 100V AC, 110V AC, 115V AC, 127V AC, 129V AC Output Frequency 60Hz Plug/Connector Type NEMA 5-20P Surge Energy Rating 190 J Waveform Type Sine Wave
Mount Type Rack Mount, Tower
Software Included Yes
Limited Warranty 2-Year
Country of Origin CN Environmental Certification RoHS, WEEE Environmentally Friendly Yes Package Contents - 2000VA 1800W 120V Double-Conversion UPS
- USB cable
- DB9 RS232 cable
- Rack-mounting hardware
- Tower support stands
- Safety instructions
- Quick start guide
