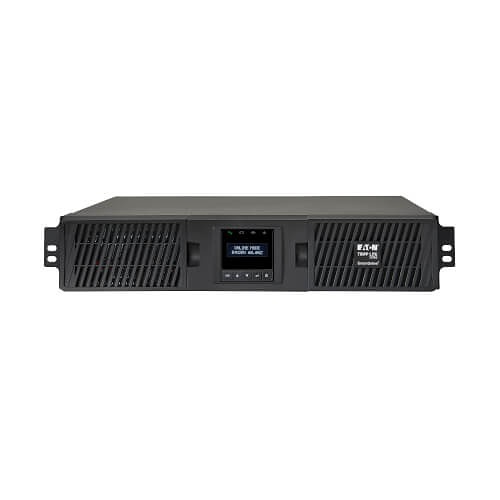

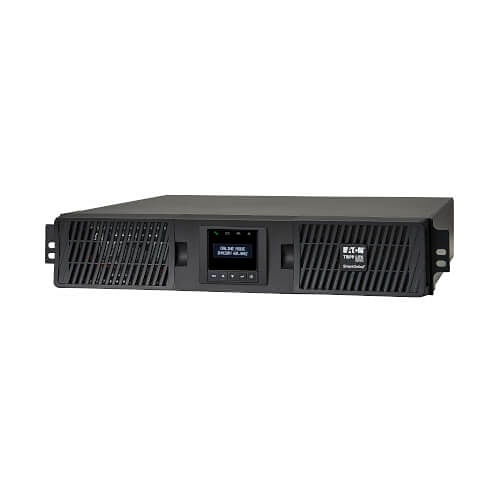

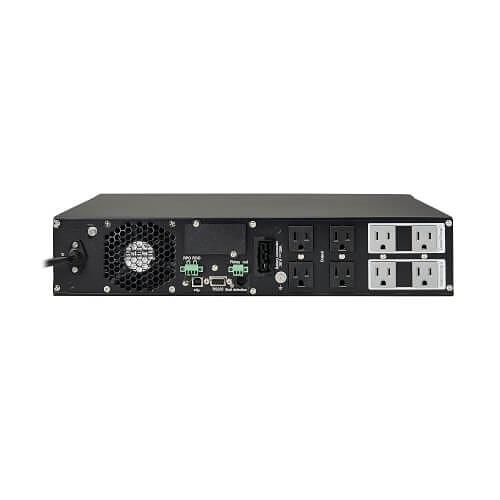

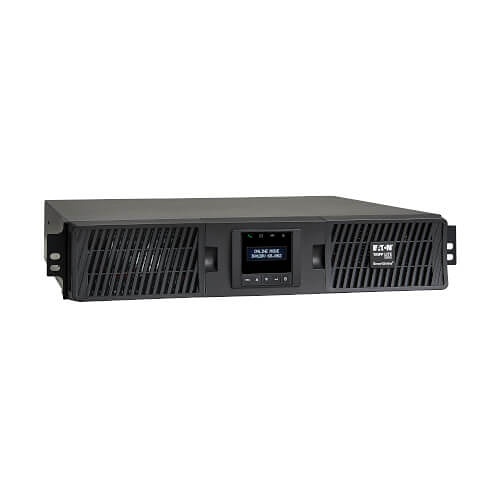

Tripp Lite UPS Smart Online 750VA 675W Rackmount 100V-120V LCD USB DB9 2URM RT
Shop all Tripp Lite by Eaton

Tripp Lite SU750RTXLCD2U Smartonline 120V 750VA 675W Double-Conversion UPS, 2U Rack/tower, Extended Run, Network Card Options, LCD display, USB, DB9 Serial

SU750RTXLCD2U|TC-SU750CD2U
Shop all Tripp Lite by Eaton

Tripp Lite SU750RTXLCD2U Smartonline 120V 750VA 675W Double-Conversion UPS, 2U Rack/tower, Extended Run, Network Card Options, LCD display, USB, DB9 Serial

SU750RTXLCD2U|TC-SU750CD2U

Sign In for Dealer Pricing

Become an ADI Customer
Tripp Lite UPS Smart Online 750VA 675W Rackmount 100V-120V LCD USB DB9 2URM RT
Tripp Lite by Eaton

Tripp Lite SU750RTXLCD2U Smartonline 120V 750VA 675W Double-Conversion UPS, 2U Rack/tower, Extended Run, Network Card Options, LCD display, USB, DB9 Serial

SU750RTXLCD2U | TC-SU750CD2U

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options.

Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for network interface options. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert monitoring software is available for free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability.

LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.

Main Features

  • 750VA / .75kVA / 675W on-line double-conversion 2U rack / tower UPS
  • 100/110/120/127V 50/60Hz output; High efficiency economy mode option
  • Interactive LCD with 9 selectable screens of UPS and site power data
  • Expandable runtime, Hot-swap batteries, 12.5 in / 31.8 cm depth
  • USB, RS232 & EPO ports, plus support for network card options
  • 2 independently switched load banks
  • NEMA 5-15P input; 6 NEMA 5-15R outlets
  • To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
  • 2-year limited warranty

General Information

Name: Tripp Lite SU750RTXLCD2U Smartonline 120V 750VA 675W Double-Conversion UPS, 2U Rack/tower, Extended Run, Network Card Options, LCD display, USB, DB9 Serial
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332168276
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
