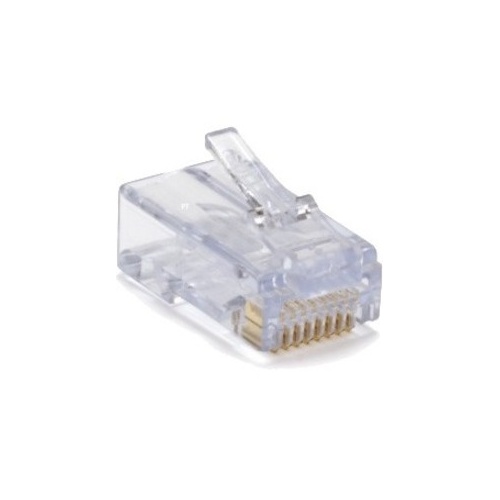

Platinum Tools 202003J EZ-RJ45 CAT5, CAT5e Connectors, 100-Pack
Platinum Tools 202003J EZ-RJ45 CAT5, CAT5e Connectors, 100-Pack
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Original EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized! WARNING:Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.
Main Features
- Max Insulation Diameter (Conductors), 0.040" (1.016 mm)
- UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
- Max Cable Outer Diameter, 0.275" (6.98 mm)
- Meets ANSI/EIA/TIA/TAA specifications
- Solid or Stranded, 24 - 23 AWG
- 50 micron gold plated contacts
- Clear/Transparent
- Made in USA
General Information
Specifications
-
ADI Part Number TS-202003J Brand Name Platinum Tools Manufacturer Platinum Tools, Inc Manufacturer Part Number 202003J Packaged Quantity 100 Packing Jar Product Line EZ-RJ45 Product Model 202003J Product Name EZ-RJ45 CAT5/5e Connectors, Jar of 100. Product Type Network Connector Â
-
Connector Details 1 x RJ-45 Network Male Contact Plating Gold Network Category Type Category 5, Category 5e Shielding No Wire Type CAT5|CAT5e Â
-
Connector Type RJ45 Network Male Number of Contacts 8 Total Number of Ports 1 Â
-
Color Clear Color Family Clear Product Color Clear, Transparent Â
-
Environmental Certification RoHS, RoHS 3 Environmentally Friendly Yes Features 50 micron gold plated contacts, Solid or Stranded, 24 – 23 AWG TAA Compliant Yes Â
