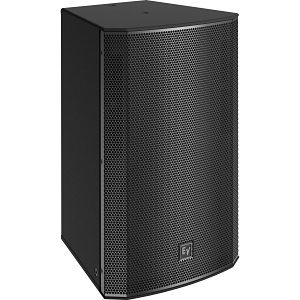

Image of UV-EVC112295
Shop all Electro-Voice by Bosch

Electro-Voice EVC-1122-95B 12" 2-Way Indoor Loudspeaker, with 90˚ 55˚ Constant Directivity, Rotatable Waveguide, Black

EVC-1122-95B|UV-EVC112295
Shop all Electro-Voice by Bosch

Electro-Voice EVC-1122-95B 12" 2-Way Indoor Loudspeaker, with 90˚ 55˚ Constant Directivity, Rotatable Waveguide, Black

EVC-1122-95B|UV-EVC112295

Sign In for Dealer Pricing

Become an ADI Customer
Image of UV-EVC112295
Electro-Voice by Bosch

Electro-Voice EVC-1122-95B 12" 2-Way Indoor Loudspeaker, with 90˚ 55˚ Constant Directivity, Rotatable Waveguide, Black

EVC-1122-95B | UV-EVC112295

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

  • 12-inch, two-way loudspeaker, with 90° x 55° constant directivity, rotatable waveguide
  • Power rating: 300 W Continuous, (1200 Peak)
  • Passive system: 95 dB, 126 dB maximum
  • Gland nut cover and stainless steel grille on PI versions
  • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end in 70V/100V lines
EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EVInnovation models (EVF, EVH, EVA).
The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a fourthorder Linkwitz Riley design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.
The EVC series is an extremely cost effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 rigging points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG. The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.
For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK150 audio transformer. Adding a TK150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. This results in transformer and non-transformer EVC loudspeakers that sound virtually identical.

Main Features

  • 12-inch, two-way loudspeaker with 90° x 55° constant directivity
  • 300 W continuous power rating, 1200 W peak
  • Rotatable waveguide for uniform pattern control
  • High-output woofer for low distortion and high efficiency
  • Fourth-order Linkwitz Riley crossover for smooth response
  • Constructed of 15-mm plywood with EVCoat finish
  • Multiple M10 rigging points for versatile mounting
  • Accepts wire gauges up to 10 AWG
  • Optional high-quality transformer with Automatic Saturation Control (ASC)

General Information

Name: Electro-Voice EVC-1122-95B 12" 2-Way Indoor Loudspeaker, with 90˚ 55˚ Constant Directivity, Rotatable Waveguide, Black
Category: Electro-Voice by Bosch, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 8717332584598
Country of Origin: Mexico. Country of origin is subject to change.
