Levelone GVT-2001 10/100/1000base-T To 1000base-Sx MMF SC Mini Media Converter, 550m
Shop all LevelOne

Levelone GVT-2001 10/100/1000base-T To 1000base-Sx MMF SC Mini Media Converter, 550m

GVT-2001|YC-GVT2001
Shop all LevelOne

Levelone GVT-2001 10/100/1000base-T To 1000base-Sx MMF SC Mini Media Converter, 550m

GVT-2001|YC-GVT2001
Key Features
What's Included
  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • 1000Base-SX Multi-mode fiber for the link up to 550m
  • 9K jumbo frames to increase data transfer rates
Key Features
What's Included
  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • 1000Base-SX Multi-mode fiber for the link up to 550m
  • 9K jumbo frames to increase data transfer rates

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • 1000Base-SX Multi-mode fiber for the link up to 550m
  • 9K jumbo frames to increase data transfer rates
LevelOne

Levelone GVT-2001 10/100/1000base-T To 1000base-Sx MMF SC Mini Media Converter, 550m

GVT-2001 | YC-GVT2001

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

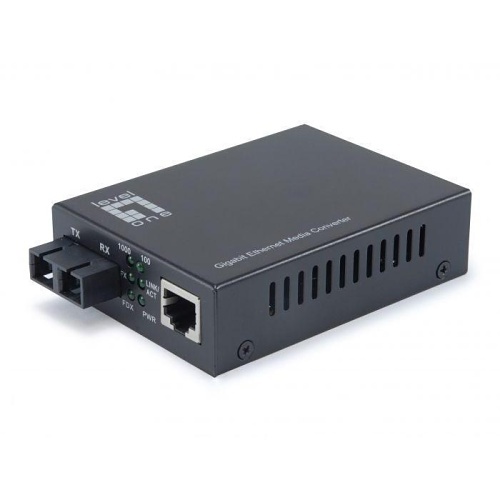

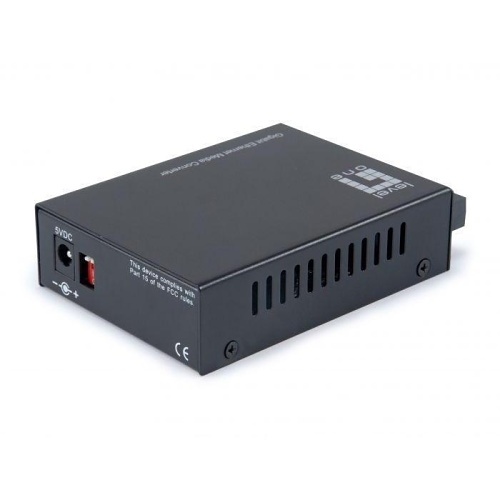

The GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m.

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

Main Features

  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • 1000Base-SX Multi-mode fiber for the link up to 550m
  • 9K jumbo frames to increase data transfer rates
  • Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Dip switches for customized configuration
  • Supports low-time lag transmission
  • Supports the transmission of extra-long packets up to 1.6KB
  • -10°C to 55°C operating temperature range

General Information

Name: Levelone GVT-2001 10/100/1000base-T To 1000base-Sx MMF SC Mini Media Converter, 550m
Category: LevelOne, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 846359031285
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Manufacturer Brochure
