Product Overview

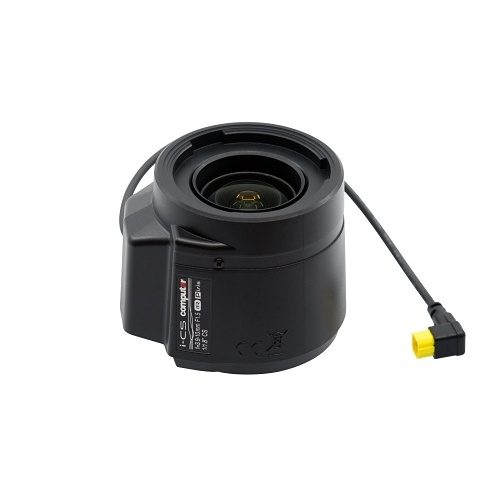

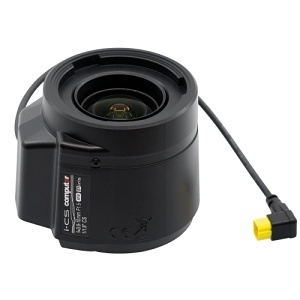

This i-CS lens features the most recent industry standard in intelligent CS-mount optics. It includes three motors, which enable automatic and remote zoom, focus, and iris opening. Lens i-CS 1/1.8" 3.9-10 mm F1.5 offers great flexibility to your installation thanks to its open protocol and the ability for the camera to interface with multiple features.
The lens is IR-corrected. This means that you don't need to adjust the camera's focus when you shift between day and night mode using the IR-cut filter.
Main Features
- IR-corrected lens
- F-number 1.5
- Focal length 3.9-10 mm
- Supports sensors up to 1/1.8"
General Information
Name: AXIS 02367-001 1/1.8" Lens I-CS 3.9 to 10mm F1.5
Category: Axis Communications, Video Surveillance, Camera Lenses, Varifocal Lenses
UPC Code: 7331021076471
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02367001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02367001 Product Name Lens i-CS 1/1.8" 3.9-10 mm F1.5 Product Type Lens Â
-
Field of View Horizontal: 120 to 47, Horizontal: 109 to 42 Iris Type P Iris Lens Type Varifocal Maximum Aperture f/1.5 Minimum Focal Length 3.90 mm Optical Zoom 2.6x Â
-
Autofocus Yes Maximum Focal Length 10 mm Â
-
Application/Usage Surveillance Camera Â
-
Diameter 2.3" Length 2.7" Â
-
Minimum Focal Length (mm) 3.9 Â
-
Limited Warranty 3 Year Â
-
Compatibility Axis Cameras:
- Q1645
- Q1645-LE
- Q1656
- Q1656-LE
Environmental Certification WEEE Environmentally Friendly Yes Sensor Size Compatibility 1/1.8", 1/2" Â
