Cypress SPX-1300 Suprex Wired Wiegand Reader-Extender, 2-Wire RS-485, Twisted Pair
Cypress SPX-1300 Suprex Wired Wiegand Reader-Extender, 2-Wire RS-485, Twisted Pair
Cypress SPX-1300 Suprex Wired Wiegand Reader-Extender, 2-Wire RS-485, Twisted Pair
SPX-1300Â |Â ZE-SPX1300
Please sign in to view pricing and availability and to add to cart.
Product Overview

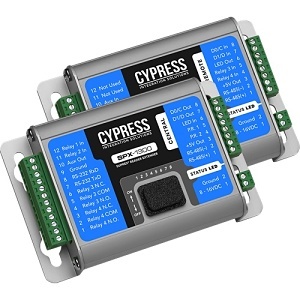

SPX-1300: Cypress Suprex® Reader-Extender, 2-wire RS-485, single reader. Connect readers to access controllers without Wiegand distance limits, using RS-485. Typical range is 10,000 ft. (3048 m), depending on environmental conditions. The Suprex is a pair of units; a Central Unit and a Remote unit. The Central Unit connects to the access control panel, and the Remote Unit connects to the Reader. The 2-wire RS-485 connection runs between the Central and Remote units.
The SPX-1300 is suitable for a connection between a single reader and access controller. An expandable RS-485 Suprex is also available, which can accommodate up to 8 readers when used with Cypress EXP expansion modules. Other Suprex models are available to link readers with an access control panel over Ethernet, Fiber Optic, or Wireless connections.
Includes
- Remote (reader/door) unit
- Central (panel) unit
Main Features
- Extends distance between panel to reader and its associated I/O connections, up to 10,000' over over 2-wire RS-485 connection
- Supports 1 reader (choose SPX-7500 for use with up to 8 readers when used with EXP Expansion Pairs)
- Supports LED and REX switch I/O
- Onboard relays for door strike / gate activation
- Supports 1 reader (for multi-reader applications, use SPX-7500)
- RS-485 (twisted pair)
- Fully Supervised
- Reader Interface
- Rugged Aluminum housing
General Information
Specifications
-
ADI Part Number ZE-SPX1300 Brand Name Cypress Manufacturer Cypress Computer Systems, Inc Manufacturer Part Number SPX-1300 Product Line Suprex Product Model SPX-1300 Product Name Suprex SPX-1300 Door Expansion Module Product Type Expansion Module Â
-
Device Supported Coaxial Cabling, Door Strikes, Elevators, Tamper Alarms Â
-
Depth 0.8" Height 3.5" Material Aluminum Product Material Aluminum Width 2.8" Â
-
Additional Information - Power input: 8 to 16 VDC
- Power out put: 5 VDC
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - Suprex SPX-1300 Door Expansion Module
- Convenient Removable Connectors
Â
