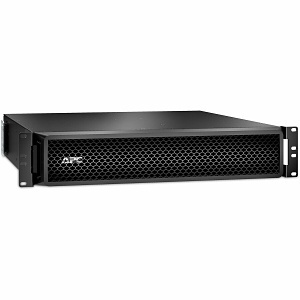

APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets
APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets
APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets
SRT2200RMXLA | 2G-SRT22RMXL
Please sign in to view pricing and availability and to add to cart.
Product Overview
Industry Leading Single Phase On-Line UPS with New Smart Management Options
The next generation Smart-UPS On-Line models are for customers who want a more Powerful and Efficient UPS with smart management options. These models feature Unity Power Factor and a unique Graphical LCD Interface that provides detailed information for a better customer experience. The next generation on-line exemplify why APC is the worldwide market leader in server class UPS’s and ensure that APC’s Smart-UPS On-Line will remain the benchmark of the industry.
Power and protection for network closets, server rooms, retail offices, banking, medical labs, and industrial applications.
Main Features
- The APC Smart-UPS On-Line SRT2200RMXLA provides high-density, double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications.
- Best-in-class power density: More real power inW, .9pf on theSRT2200RMXLA
- High-efficiency “Green Mode”: Achieves 97% efficiency,Which saves utility and cooling costs without compromising performance or reliability. Energy Star compliant.
- Operate without battery: Ability to immediately protect equipment when power returns after a complete discharge of the battery.
- Built-in energy meter: Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
- Rack Mountable: Ability to easily mount into a rack or enclosure
- Smart-slot: Allows the ability to add in a network management card to manage and monitor the UPS remotely (card sold separately)
- Optional additional battery packs: can be added to increase runtime Extended runtime for business critical devices such as
- Mid Range Servers (Windows/Linux)
- Business critical servers
General Information
Specifications
-
ADI Part Number 2G-SRT22RMXL Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SRT2200RMXLA Product Line Smart-UPS Product Name Smart-UPS SRT 2200VA RM 120V Product Type Double Conversion Online UPS
-
Hot Swappable Yes Number of Batteries 1 Number of Battery & Surge Outlets 7 Output Voltage 120V AC Receptacle Detail 1 x NEMA L5-20R, 6 x NEMA 5-20R Receptacle Type NEMA 5-20R, NEMA L5-20R
-
Battery Chemistry Lead Acid Battery Life 5 Year DC System Voltage 72 V DC Replaceable Battery Yes Typical Battery Recharge Time 3-Hour
-
Energy Star Yes
-
Status Indicators LCD Display
-
Maximum Operating Elevation 10000 ft Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 50000 ft Thermal Dissipation 156.79 W
-
EPO Port Yes
-
Network Management SmartSlot
-
Application/Usage Network Workstation, Server Color Black Color Family Black Depth 23" Form Factor Rack Mount Height 3.3" Product Color Black Rack Height 2U Weight (Approximate) 55.01 lb Width 17"
-
Input Frequency 70 Hz Input Voltage 120V AC Plug/Connector Type NEMA 5-20P Surge Energy Rating 340 J Waveform Type Sine Wave
-
Software Included Powerchute Serial Edition
-
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery Limited Warranty 3-Year
-
Environmental Certification ENERGY STAR 2.0, REACH, RoHS Environmentally Friendly Yes Package Contents - Smart-UPS SRT 2200VA RM 120V
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- USB cable
- Warranty card
