Belden 2413 009A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m) Reel-in-Box, White
2413 009A1000|7B-2413009A1
Color: White
Shielding: No
Number of Conductors: 8
Belden 2413 009A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m) Reel-in-Box, White
2413 009A1000|7B-2413009A1
Color: White
Shielding: No
Number of Conductors: 8
Belden
Belden 2413 009A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m) Reel-in-Box, White
2413 009A1000Â |Â 7B-2413009A1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

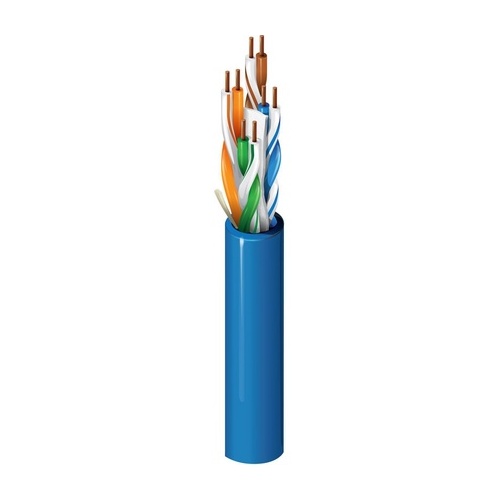

Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
Main Features
- Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE , PoE , PoE Solid Stranding Conductor Material: Bare Copper
- Number of Pairs: 4
- Size 23 AWG
- Stranding: Solid
- Material: BC - Bare Copper (High Conductivity)
- Insulation Material: PO FEP - Polyolefin Fluorinated Ethylene Propylene
- Plenum
- Allows you to access all of the networked data, swiftly and securely
- Features Category 6+ cable type to better accommodate your precise requirements with maximum productivity
- Durable material offers flame retardancy
General Information
Name: Belden 2413 009A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m) Reel-in-Box, White
Category: Belden, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 612825061588
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number 7B-2413009A1 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 2413 009A1000 Product Name 2413 Multi-Conductor - Enhanced Category 6 Nonbonded-Pair Cables Product Type Network Cable Â
-
American Wire Gauge 23AWG Cable Listing CMP, FT6 Cable Rating Plenum Cable Type Category 6+ Conductor Count 4 Conductor Material Bare Copper Device Supported Network Device Jacket Material LS PVC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid Â
-
Data Transfer Rate 100 Mbit/s Â
-
Cable Length 1000' Color White Insulation Material FEP Material Bare Copper, PVC Package Type Bulk Â
-
Environmental Certification China RoHS, ELV, EU RoHS, RoHS, RoHS 2, WEEE Environmentally Friendly Yes Features Bendable, PoE, PoE+, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT) Â
