Genesis 22165509 18/6 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Gray
22165509|WG-22165509
Color: Gray
Cable Length: 500'
Package Type: REELEX Pull Box
Number of Conductors: 6
American Wire Gauge: 18AWG
Genesis 22165509 18/6 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Gray
22165509|WG-22165509
Color: Gray
Cable Length: 500'
Package Type: REELEX Pull Box
Number of Conductors: 6
American Wire Gauge: 18AWG
Genesis
Genesis 22165509 18/6 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Gray
22165509Â |Â WG-22165509
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

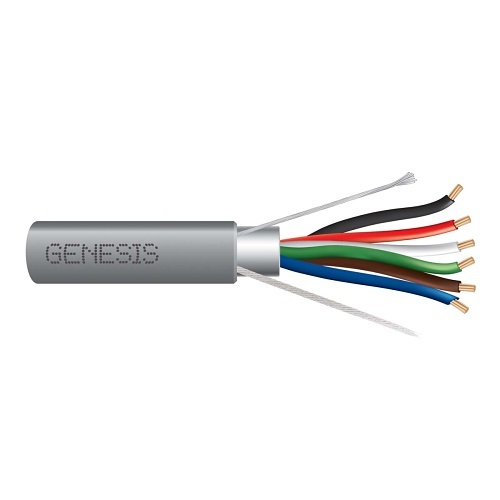

This Genesis® cable features 6 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
Main Features
- Stranded bare copper conductors
- Overall foil shield
- Rated for riser and general purpose indoor installation
- Rated for sunlight (UV) resistance
- Fully compatible with security devices
- Features Bare Wire cable type for optimal performance and better dependability
General Information
Name: Genesis 22165509 18/6 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 500' (152.4m), REELEX Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 194160006764
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22165509 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22165509 Packaged Quantity 1 Product Model 22165509 Product Name 22165509 - 18 AWG 6C STR Shielded Riser, Gray, 500 FT. Pull Box Product Type Access & Security Cable Â
-
American Wire Gauge 18AWG Cable Listing CL3R, CMR, FPLR, FT4, Sunlight Resistant Cable Rating Riser Cable Type Multi-conductor/Multi-pair Conductor Count 3 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/6 Device Supported Security Device Jacket Material PVC Number of Conductors 6 Number of Pairs 3 Shielding Yes Solid or Stranded Stranded Â
-
TAA Compliant Yes Â
-
ADI Part Number Replaces WG-12165509 Model Number Replaces 12165509 Â
-
Cable Length 500' Color Gray Insulation Material PP Material Bare Copper Package Type REELEX Pull Box Weight (Approximate) 21 lb Â
-
Limited Warranty 3 Year; 3-for-1 Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor Â
