ICC ICCABR6EBL 600MHz CAT6e Bulk Cable 23/4 UTP, Solid, CMR, Pull Box, 1000' (304.8m), Blue
ICCABR6EBL|H2-CABR6EBL
Color: Blue
Jacket Type: Riser
ICC ICCABR6EBL 600MHz CAT6e Bulk Cable 23/4 UTP, Solid, CMR, Pull Box, 1000' (304.8m), Blue
ICCABR6EBL|H2-CABR6EBL
Color: Blue
Jacket Type: Riser
Key Features
- TIA 568-C.2 Category 6.
- UL Type CMR for Riser.
- UL 444.
Key Features
- TIA 568-C.2 Category 6.
- UL Type CMR for Riser.
- UL 444.
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- TIA 568-C.2 Category 6.
- UL Type CMR for Riser.
- UL 444.
ICC
ICC ICCABR6EBL 600MHz CAT6e Bulk Cable 23/4 UTP, Solid, CMR, Pull Box, 1000' (304.8m), Blue
ICCABR6EBL | H2-CABR6EBL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
- Overview
ICC's CMR and CMP UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified. Available in spools of 1000 feet in a convenient pull box dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today's demanding voice, data, video, and security applications in commercial and residential installations.
Feature - TIA 568-C.2 Category 6
- UL Type CMR for Riser
- UL 444
APPLICATIONS - 10 Base-T
- 100Base-T (IEEE 802.3u)
- 1000 Base-T
- High Definition Video
- Digital Broadcast Video/IP Video/VoIP
- ISDN/ADSL
- 155Mbps ATM
- Conductor: Solid Bare Copper
- Insulation: PE
- Jacket: FR-PVC
- Cable spine separator X
- Component: 4 twisted pair
- Insulation Dia.(in): 0.039
- Outer Dia.(in): 0.236"
- Sequential footage marking for easy usage tracking.

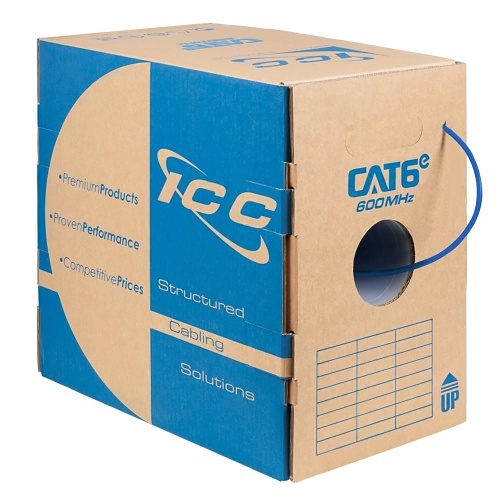

- Packaged in a pull box.
- Wired pairs are vividly colored for quick identification.
- Temperature Rating (°F)
- Installation temperature: 32 to 140 Fahrenheit (°F)
- Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- TIA 568-C.2 Category 6.
- UL Type CMR for Riser.
- UL 444.
- Solid Bare Copper
- Size: 23 AWG
- 4 twisted pair
- Material: PVC
- Features Category 6e cable type for your convenience and desired usability
- Fully compatible with network devices
General Information
Name: ICC ICCABR6EBL 600MHz CAT6e Bulk Cable 23/4 UTP, Solid, CMR, Pull Box, 1000' (304.8m), Blue
Category: ICC, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 633758032025
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number H2-CABR6EBL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6EBL Product Model ICCABR6EBL Product Name Cat.6 UTP Network Cable Product Type Network Cable
-
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6 Conductor Count 4 Device Supported Network Device Jacket Material PVC Jacket Type Riser Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
-
Cable Length 1000' Color Blue Insulation Material FEP Material PVC Package Type Pull Box
-
Limited Warranty 3 Year
-
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes
