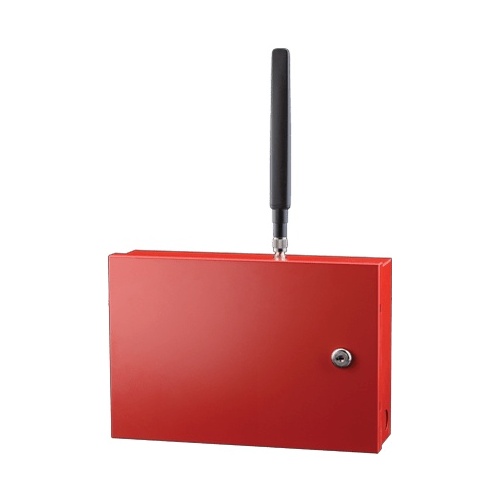

Telguard TG-7FE-V Dual Path Communication for Fire or Burglary Systems
TG-7FE-V
|AD-TG7FEV
Shop all Telguard
Telguard TG-7FE-V Dual Path Communication for Fire or Burglary Systems
TG-7FE-V | AD-TG7FEV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Telguard TG-7FE Universal Dual Path Commercial Fire Cellular Alarm Communicator offers the best in fire alarm communications by providing two separate pathways to reliably transmit signals; a wired LAN connection to the Internet and 5G LTE-M cellular. The Telguard TG-7FE (designed for Verizon) can work as a dual path communicator prioritizing LAN or Cell, as well as work as a sole path cellular device that meets UL 864 requirements. The always-active cellular connection ioffers nationwide coverage on the Verizon network, allowing for remote troubleshooting even when internet service is down. It’s highly configurable to meet the requirements of any AHJ, and no one makes a communicator with as many features that works with as many panels and formats.
Main Features
- Certified for use on the Verizon 5G LTE-M Network for nationwide coverage
- Dual communication paths - If the Internet connection is interrupted or the LAN goes down
- Powers directly from the fire panel's 12V/24V auxiliary power supply or via plug-in transformer
- Interfaces with panel over a single DACT connection for universal compatibility (use TG-PEM accessory when panel has no DACT)
- Supports virtually all alarm formats using dial capture for universal panel compatibility
- Link Supervision available in 60- and 5-minute frequencies to meet any AHJ requirements for Sole Path connectivity
General Information
Name: Telguard TG-7FE-V Dual Path Communication for Fire or Burglary Systems
Category: Telguard, Fire, Fire Control Panels, Alarm Communicators
UPC Code: 702054304157
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AD-TG7FEV Brand Name Telguard Manufacturer Telular Corporation Manufacturer Part Number TG-7FE-V Product Line Telguard Commercial Fire Product Model TG-7FE-V Product Name Dual Path Internet and 5G LTE-M Commercial Fire Communicator - Verizon Product Type Dual Path, Fire Alarm Communicator
Cellular Generation 5G LTE-M Connectivity Technology Wired, Wireless Power Consumption 110mA, 18mA
Ethernet Yes
Color Red Depth 3.5" Height 7.5" Width 11.5"
Input Voltage 24V DC
Additional Information Compatible Formats: CID, SIA, Pulse (4x2, 3x1), Radionics (IIe/3a2,4), DMP Antenna: 50? TNC connector (female) Available Accessories High gain and directional antennas Varying lengths of antenna cables TG-PEM Power & Expansion Module Compatibility Verizon
