Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub
Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub
Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub
B004-DPUA2-KÂ |Â TC-B004DPUA2
Please sign in to view pricing and availability and to add to cart.
Product Overview

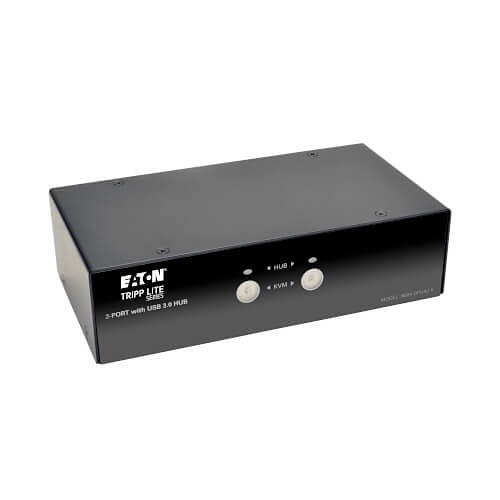

The desktop B004-DPUA2-K 2-Port DisplayPort KVM Switch lets you access, control, boot and reboot two DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching between DisplayPort computers is quick and simple using keyboard hotkeys or buttons on the unit.
You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks, and the two-port USB 3.0 SuperSpeed hub allows you to connect peripherals, such as a webcam, flash drive, printer or scanner, and share them with both computers. Because the audio and USB 3.0 hub ports can be accessed independently, you can, for instance, use a printer connected to the hub to print data from one computer while also listening to music from the other computer.
All necessary cables are included. The B004-DPUA2-K supports digital video resolutions up to 2560 x 1600 (including 1080p), 2-channel stereo audio and data transfer rates up to 5 Gbps. The built-in DDC emulator sends the console monitor's EDID information to all connected computers to ensure top video quality and prevent any delay or change in video resolution when switching computers.
The B004-DPUA2-K is easy to set up with no software to install and supports Windows, Mac, Linux and Sun. The USB 3.0 hub is backward-compatible with USB 2.0 and USB 1.1 devices.
Main Features
- Connect peripherals to built-in 2-port USB 3.0 hub
- Switch between computers via front buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Supports Displayport 1.1
- Includes all necessary DisplayPort, USB 3.0 and audio cables
General Information
Specifications
-
ADI Part Number TC-B004DPUA2 Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number B004-DPUA2-K Packaged Quantity 1 Product Model B004-DPUA2-K Product Name 2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub Product Type KVM Switchbox Â
-
Number of Computers Supported 2 Number of Local Users Supported 1 Â
-
Maximum Video Resolution 1600 x 1200 Â
-
DisplayPort Yes Number of DisplayPorts 3 Number of USB Ports 6 USB Yes Â
-
Limited Warranty 3 Year Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features DisplayPort; Stereo Audio Package Contents - 2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub
- 2 x DisplayPort Cables, 4 ft.
- 2 x USB 3.0 Type-A to Type-B cables, 4 ft.
- 2 x 3.5 mm mini-stereo cables, 4 ft.
- and more below
