Product Overview
Camden’s Wiegand receivers are designed to interface with existing access control systems for both long and short access applications. CV-WRX4 receiver is designed for use with Camden CV-WTX2 transmitters.
The transmitter signal is codified in two different protocols according to its configuration: Wiegand 26 and Wiegand 37. The receiver provides facility codes 1 to 255 by DIP switch J9 using 8 bit binary configuration.
Main Features
- 4 channel receiver facilitates in/out control
- Compatible to all access control panels, 26 bit Wiegand
- Field selectable facility codes, 1 to 255
- Facility codes, 1 to 255
- High security rolling code, 19 trillion combinations
- Weather and vandal resistant enclosure
- Input Voltage: 12 VDC
- Current: 4mA typical / 36mA peak
- IP Rating: CV: IP54 (IP65 with cable plug installed)
- Dimensions: 3-1/4"W x 7-3/8"H x 1-5/8"D (82mm x 187mm x 42mm)
General Information

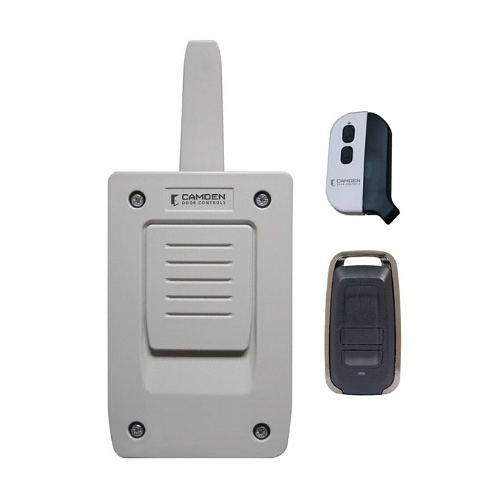

Name: Camden CV-WRX4 4-Channel Wiegand Receiver
Category: Camden Door Controls, Access Control, Access Barriers & Crowd Control, Gate Remote Transmitters
UPC Code: 670454209993
Country of Origin: Spain. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-CVWRX4 Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CV-WRX4 Product Name CV-WR Security Wireless Receiver Product Series CV-WR Product Type Security Wireless Receiver Â
-
Application/Usage Access Control Device, Barrier Gate, Door, Security, Transmitter Depth 1.7" Height 3.2" Width 7.4" Â
-
Compatibility Camden CV-WTX2 Transmitters Environmental Certification RoHS Environmentally Friendly Yes Â
