infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller
S-EIDC32
|IA-SEIDC32
Shop all infinias by 3XLOGIC

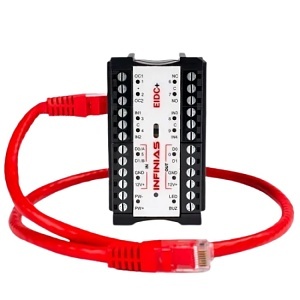

infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller
S-EIDC32 | IA-SEIDC32
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This compact, network-connected door controller offers easy installation and reliable access control. It supports key security features, multiple reader types, and can operate even when offline. Power and data are delivered through a single cable for streamlined setup.
Main Features
- Compact single door controller mounts at the door in a double-gang box for easy installation
- Supports Lock Control, Request to Exit (REX), Alarm Bypass, Door Contact, and configurable inputs
- Uses existing network infrastructure and connects to the closest network switch with a single Cat 5/Cat 6 cable
- Supports DHCP and Static IP addresses
- Secure transmissions using TLS 1.2
- 3-State alarm monitoring and anti-pass back for enhanced security
- PoE Carries both data and power for the controller and peripheral door hardware, or can be powered with a 24VDC power supply
- Supports up to 2 Wiegand or OSDP readers and multiple credential types
- Buffers up to 16,000 local events when disconnected from the host
General Information
Name: infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller
Category: infinias by 3XLOGIC, Access Control, Access Control Panels & Accessories, Access Control Panels
UPC Code: 812562020019
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number IA-SEIDC32 Brand Name infinias by 3XLOGIC Manufacturer 3xLOGIC Inc. Manufacturer Part Number S-EIDC32 Product Name Ethernet-Enabled Integrated Door Controller Product Type Door Controller
Application/Usage Access Control, Door Device Supported Access Control System, Switch
ADI Part Number Replaces IA-SDIC10203, IA-SEIDC32B, IA-SIDC1020S Model Number Replaces SDIC10203S, S-EIDC32B, S-IDC-1020-3S
Depth 1.3" Height 2.8" Weight 3.70oz Width 1.7"
Limited Warranty 2-Year
Additional Information Country of origin: United States. Country of origin is subject to change. Country of Origin US Features Built-in Receiver, PoE
